A thread process. More...

#include <sysc/kernel/sc_thread_process.h>

Inheritance diagram for sc_core::sc_thread_process:

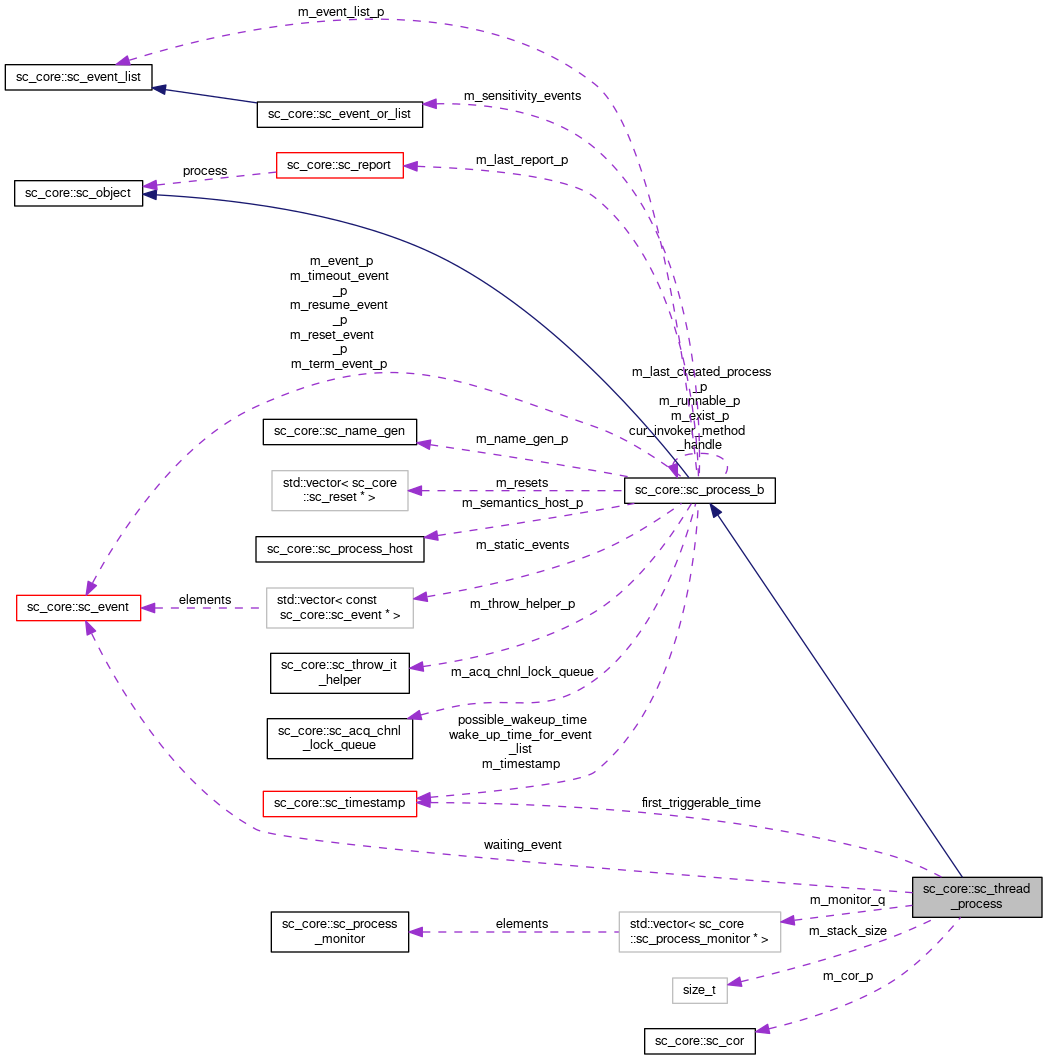

Collaboration diagram for sc_core::sc_thread_process:

Public Member Functions
	sc_thread_process (const char name_p, bool free_host, SC_ENTRY_FUNC method_p, sc_process_host host_p, const sc_spawn_options *opt_p)

virtual const char *	kind () const

void	aux_boundary ()

Public Member Functions inherited from sc_core::sc_process_b
void	set_upcoming_segment_ids (int *segment_ids)
	sets the upcoming segment ids TS 07/08/17 More...

int *	get_upcoming_segment_ids ()
	returns the upcoming segment ids TS 07/08/17 More...

void	set_upcoming_socket_id (int socket_id)
	sets the upcoming socket id ZC 10:30 2018/10/31 More...

int	get_upcoming_socket_id ()
	returns the upcoming socket id ZC 10:31 2018/10/31 More...

void	increase_offset (int offset)
	increase the offset ZC 10:30 2018/10/31 More...

void	decrease_offset (int offset)
	decrease the offset ZC 10:31 2018/10/31 More...

int	get_offset ()
	returns the offset ZC 10:31 2018/10/31 More...

	sc_process_b (const char name_p, bool is_thread, bool free_host, SC_ENTRY_FUNC method_p, sc_process_host host_p, const sc_spawn_options *opt_p)

int	current_state ()

bool	dont_initialize () const

virtual void	dont_initialize (bool dont)

std::string	dump_state () const

const ::std::vector< sc_object * > &	get_child_objects () const

sc_curr_proc_kind	proc_kind () const

sc_event &	reset_event ()

sc_event &	terminated_event ()

void	lock_and_push (CHNL_MTX_TYPE_ *lock)
	Acquire a new channel lock or increment the lock counter. More...

void	pop_and_unlock (CHNL_MTX_TYPE_ *lock)
	Release a channel lock or decrement the lock counter. More...

void	lock_all_channels (void)
	Acquire all the channel locks. More...

void	unlock_all_channels (void)
	Release all the channel locks. More...

int	get_segment_id ()
	Set the current segment ID of this process. More...

void	set_segment_id (int id)
	Get the current segment ID of this process. More...

const sc_timestamp &	get_timestamp ()
	Set the local time stamp of this process. More...

void	set_timestamp (const sc_timestamp &ts)
	Get the local time stamp of this process. More...

int	get_instance_id ()
	Set the instance ID of this process. More...

void	set_instance_id (int id)
	Get the instance ID of this process. More...

void	add_sensitivity_event (const sc_event &e)

std::string	event_names ()

Public Member Functions inherited from sc_core::sc_object
const char *	name () const

const char *	basename () const

virtual void	print (::std::ostream &os=::std::cout) const

virtual void	dump (::std::ostream &os=::std::cout) const

virtual void	trace (sc_trace_file *tf) const

sc_simcontext *	simcontext () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &name_)

const sc_attr_base *	get_attribute (const std::string &name_) const

sc_attr_base *	remove_attribute (const std::string &name_)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

virtual const std::vector < sc_event * > &	get_child_events () const

sc_object *	get_parent () const

sc_object *	get_parent_object () const

Public Attributes
sc_event *	waiting_event

sc_timestamp	first_triggerable_time

Public Attributes inherited from sc_core::sc_process_b
bool	event_list_member_triggered

sc_timestamp	wake_up_time_for_event_list

int *	segment_ids
	stores the upcoming segment ids TS 07/08/17 More...

int	socket_id_
	stores the upcoming socket id ZC 10:31 2018/10/31 More...

const char *	file

int	lineno

int	proc_id

int	m_process_state
	The name of this process. More...

sc_event_or_list *	m_sensitivity_events

sc_timestamp	possible_wakeup_time

bool	invoker

sc_process_b *	cur_invoker_method_handle

Protected Member Functions
virtual	~sc_thread_process ()

virtual void	disable_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)

virtual void	enable_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)

virtual void	kill_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)

sc_thread_handle	next_exist ()

sc_thread_handle	next_runnable ()

virtual void	prepare_for_simulation ()

virtual void	resume_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)

void	set_next_exist (sc_thread_handle next_p)

void	set_next_runnable (sc_thread_handle next_p)

void	set_stack_size (std::size_t size)

void	suspend_me ()

virtual void	suspend_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)

virtual void	throw_reset (bool async)

virtual void	throw_user (const sc_throw_it_helper &helper, sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)

bool	trigger_dynamic (sc_event *, bool &)

bool	deliver_event_at_time (sc_event *e, sc_timestamp e_delivery_time)

void	trigger_static (sc_event *)
	A new parameter is added to update the local time stamp in the thread process. More...

void	wait (const sc_event &, int=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event_or_list &, int=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event_and_list &, int=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &, int=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &, const sc_event &, int=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &, const sc_event_or_list &, int=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &, const sc_event_and_list &, int=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait_cycles (int, int n=1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	add_monitor (sc_process_monitor *monitor_p)

void	remove_monitor (sc_process_monitor *monitor_p)

void	signal_monitors (int type=0)

Protected Member Functions inherited from sc_core::sc_process_b
virtual	~sc_process_b ()

virtual void	add_child_object (sc_object *)

void	add_static_event (const sc_event &)

bool	dynamic () const

const char *	gen_unique_name (const char *basename_, bool preserve_first)

sc_report *	get_last_report ()

bool	is_disabled () const

bool	is_runnable () const

virtual bool	remove_child_object (sc_object *)

void	remove_dynamic_events (bool skip_timeout=false)

void	remove_static_events ()

void	set_last_report (sc_report *last_p)

bool	timed_out () const

void	report_error (const char msgid, const char msg="") const

void	report_immediate_self_notification () const

void	disconnect_process ()

void	initially_in_reset (bool async)

bool	is_unwinding () const

bool	start_unwinding ()

bool	clear_unwinding ()

void	reset_changed (bool async, bool asserted)

void	reset_process (reset_type rt, sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)

virtual bool	terminated () const

void	trigger_reset_event ()

void	semantics ()

Protected Member Functions inherited from sc_core::sc_object
	sc_object ()

	sc_object (const char *nm)

	sc_object (const sc_object &)

sc_object &	operator= (const sc_object &)

virtual	~sc_object ()

virtual void	add_child_event (sc_event *event_p)

virtual bool	remove_child_event (sc_event *event_p)

phase_cb_mask	register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask	unregister_simulation_phase_callback (phase_cb_mask)

Protected Attributes
sc_cor *	m_cor_p

std::vector< sc_process_monitor * >	m_monitor_q

std::size_t	m_stack_size

int	m_wait_cycle_n

Protected Attributes inherited from sc_core::sc_process_b
int	m_active_areset_n

int	m_active_reset_n

bool	m_dont_init

bool	m_dynamic_proc

const sc_event *	m_event_p

int	m_event_count

const sc_event_list *	m_event_list_p

sc_process_b *	m_exist_p

bool	m_free_host

bool	m_has_reset_signal

bool	m_has_stack

bool	m_is_thread

sc_report *	m_last_report_p

sc_name_gen *	m_name_gen_p

sc_curr_proc_kind	m_process_kind

int	m_references_n

std::vector< sc_reset * >	m_resets

sc_event *	m_reset_event_p

sc_event *	m_resume_event_p

sc_process_b *	m_runnable_p

sc_process_host *	m_semantics_host_p

SC_ENTRY_FUNC	m_semantics_method_p

int	m_state

std::vector< const sc_event * >	m_static_events

bool	m_sticky_reset

sc_event *	m_term_event_p

sc_throw_it_helper *	m_throw_helper_p

process_throw_type	m_throw_status

bool	m_timed_out

sc_event *	m_timeout_event_p

trigger_t	m_trigger_type

bool	m_unwinding

sc_acq_chnl_lock_queue	m_acq_chnl_lock_queue
	A list of channel locks acquired by this process. More...

int	m_segment_id
	The current segment ID of this process. More...

sc_timestamp	m_timestamp
	The local time stamp of this process. More...

int	m_instance_id
	The instance ID of this process. More...

int	seg_offset_

Friends
class	sc_event

class	sc_join

class	sc_module

class	sc_channel

class	sc_process_b

class	sc_process_handle

class	sc_process_table

class	sc_simcontext

class	sc_runnable

class	Invoker

void	sc_thread_cor_fn (void *)

void	sc_set_stack_size (sc_thread_handle, std::size_t)

sc_cor *	get_cor_pointer (sc_process_b *process_p)

void	wait (int, sc_simcontext *)

void	wait (const sc_event &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event_or_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event_and_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &, const sc_event &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &, const sc_event_or_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &, const sc_event_and_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation. More...

Additional Inherited Members
Public Types inherited from sc_core::sc_process_b
enum	process_throw_type { THROW_NONE = 0, THROW_KILL, THROW_USER, THROW_ASYNC_RESET, THROW_SYNC_RESET }

enum	process_state { ps_bit_disabled = 1, ps_bit_ready_to_run = 2, ps_bit_suspended = 4, ps_bit_zombie = 8, ps_normal = 0 }

enum	reset_type { reset_asynchronous = 0, reset_synchronous_off, reset_synchronous_on }

enum	trigger_t { STATIC, EVENT, OR_LIST, AND_LIST, TIMEOUT, EVENT_TIMEOUT, OR_LIST_TIMEOUT, AND_LIST_TIMEOUT }

Public Types inherited from sc_core::sc_object
typedef unsigned	phase_cb_mask

Static Public Member Functions inherited from sc_core::sc_process_b
static sc_process_handle	last_created_process_handle ()

Static Protected Member Functions inherited from sc_core::sc_process_b
static sc_process_b *	last_created_process_base ()

Static Protected Attributes inherited from sc_core::sc_process_b
static sc_process_b *	m_last_created_process_p

Detailed Description

A thread process.

Definition at line 98 of file sc_thread_process.h.

Constructor & Destructor Documentation

sc_core::sc_thread_process::sc_thread_process	(	const char *	name_p,
		bool	free_host,
		SC_ENTRY_FUNC	method_p,
		sc_process_host *	host_p,
		const sc_spawn_options *	opt_p
	)

virtual sc_core::sc_thread_process::~sc_thread_process ( )

protectedvirtual

Member Function Documentation

void sc_core::sc_thread_process::add_monitor ( sc_process_monitor * monitor_p )

inlineprotected

Definition at line 806 of file sc_thread_process.h.

void sc_core::sc_thread_process::aux_boundary ( )

inline

Definition at line 450 of file sc_thread_process.h.

bool sc_core::sc_thread_process::deliver_event_at_time	(	sc_event *	e,
		sc_timestamp	e_delivery_time
	)

protected

virtual void sc_core::sc_thread_process::disable_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS )

protectedvirtual

Implements sc_core::sc_process_b.

virtual void sc_core::sc_thread_process::enable_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS )

protectedvirtual

Implements sc_core::sc_process_b.

virtual void sc_core::sc_thread_process::kill_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS )

protectedvirtual

Implements sc_core::sc_process_b.

virtual const char* sc_core::sc_thread_process::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Reimplemented in sc_core::sc_cthread_process.

Definition at line 137 of file sc_thread_process.h.

sc_thread_handle sc_core::sc_thread_process::next_exist ( )

inlineprotected

Definition at line 834 of file sc_thread_process.h.

sc_thread_handle sc_core::sc_thread_process::next_runnable ( )

inlineprotected

Definition at line 846 of file sc_thread_process.h.

virtual void sc_core::sc_thread_process::prepare_for_simulation ( )

protectedvirtual

void sc_core::sc_thread_process::remove_monitor ( sc_process_monitor * monitor_p )

inlineprotected

Definition at line 813 of file sc_thread_process.h.

virtual void sc_core::sc_thread_process::resume_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS )

protectedvirtual

Implements sc_core::sc_process_b.

void sc_core::sc_thread_process::set_next_exist ( sc_thread_handle next_p )

inlineprotected

Definition at line 828 of file sc_thread_process.h.

void sc_core::sc_thread_process::set_next_runnable ( sc_thread_handle next_p )

inlineprotected

Definition at line 840 of file sc_thread_process.h.

void sc_core::sc_thread_process::set_stack_size ( std::size_t size )

inlineprotected

Definition at line 257 of file sc_thread_process.h.

void sc_core::sc_thread_process::signal_monitors ( int type = 0 )

protected

void sc_core::sc_thread_process::suspend_me ( )

inlineprotected

Definition at line 282 of file sc_thread_process.h.

virtual void sc_core::sc_thread_process::suspend_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS )

protectedvirtual

Implements sc_core::sc_process_b.

virtual void sc_core::sc_thread_process::throw_reset ( bool async )

protectedvirtual

Implements sc_core::sc_process_b.

virtual void sc_core::sc_thread_process::throw_user	(	const sc_throw_it_helper &	helper,
		sc_descendant_inclusion_info	descendants = `SC_NO_DESCENDANTS`
	)

protectedvirtual

Implements sc_core::sc_process_b.

bool sc_core::sc_thread_process::trigger_dynamic	(	sc_event *	,
		bool &
	)

protected

void sc_core::sc_thread_process::trigger_static ( sc_event * e )

inlineprotected

A new parameter is added to update the local time stamp in the thread process.

Definition at line 871 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_event &	e,
		int	seg_id = `-1`
	)

inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 492 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_event_or_list &	el,
		int	seg_id = `-1`
	)

inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 536 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_event_and_list &	el,
		int	seg_id = `-1`
	)

inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 579 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_time &	t,
		int	seg_id = `-1`
	)

inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 621 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_time &	t,
		const sc_event &	e,
		int	seg_id = `-1`
	)

inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 665 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_time &	t,
		const sc_event_or_list &	el,
		int	seg_id = `-1`
	)

inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 698 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_time &	t,
		const sc_event_and_list &	el,
		int	seg_id = `-1`
	)

inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 731 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait_cycles	(	int	seg_id,
		int	n = `1`
	)

inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 774 of file sc_thread_process.h.

Friends And Related Function Documentation

sc_cor* get_cor_pointer ( sc_process_b * process_p )

friend

friend class Invoker

friend

Definition at line 115 of file sc_thread_process.h.

friend class sc_channel

friend

Definition at line 106 of file sc_thread_process.h.

friend class sc_event

friend

Definition at line 101 of file sc_thread_process.h.

friend class sc_join

friend

Definition at line 102 of file sc_thread_process.h.

friend class sc_module

friend

Definition at line 103 of file sc_thread_process.h.

friend class sc_process_b

friend

Definition at line 108 of file sc_thread_process.h.

friend class sc_process_handle

friend

Definition at line 109 of file sc_thread_process.h.

friend class sc_process_table

friend

Definition at line 110 of file sc_thread_process.h.

friend class sc_runnable

friend

Definition at line 112 of file sc_thread_process.h.

void sc_set_stack_size	(	sc_thread_handle	,
		std::size_t
	)

friend

friend class sc_simcontext

friend

Definition at line 111 of file sc_thread_process.h.

void sc_thread_cor_fn ( void * )

friend

void wait	(	int	,
		sc_simcontext *
	)

friend

void wait	(	const sc_event &	,
		int	,
		sc_simcontext *
	)

friend

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_event_or_list &	,
		int	,
		sc_simcontext *
	)

friend

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_event_and_list &	,
		int	,
		sc_simcontext *
	)

friend

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_time &	,
		int	,
		sc_simcontext *
	)

friend

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_time &	,
		const sc_event &	,
		int	,
		sc_simcontext *
	)

friend

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_time &	,
		const sc_event_or_list &	,
		int	,
		sc_simcontext *
	)

friend

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_time &	,
		const sc_event_and_list &	,
		int	,
		sc_simcontext *
	)

friend

A new parameter segment ID is added for the out-of-order simulation.

Member Data Documentation

sc_timestamp sc_core::sc_thread_process::first_triggerable_time

Definition at line 132 of file sc_thread_process.h.

sc_cor* sc_core::sc_thread_process::m_cor_p

protected

Definition at line 242 of file sc_thread_process.h.

std::vector<sc_process_monitor*> sc_core::sc_thread_process::m_monitor_q

protected

Definition at line 243 of file sc_thread_process.h.

std::size_t sc_core::sc_thread_process::m_stack_size

protected

Definition at line 244 of file sc_thread_process.h.

int sc_core::sc_thread_process::m_wait_cycle_n

protected

Definition at line 245 of file sc_thread_process.h.

sc_event* sc_core::sc_thread_process::waiting_event

Definition at line 131 of file sc_thread_process.h.

The documentation for this class was generated from the following file:

sysc/kernel/sc_thread_process.h

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
