sc_core::sc_event Class Reference

The event class. More...

#include <sysc/kernel/sc_event.h>

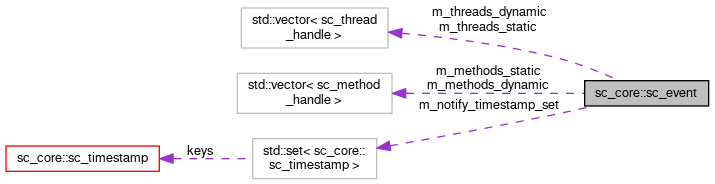

Collaboration diagram for sc_core::sc_event:

Public Member Functions
sc_timestamp	get_earliest_notification_time ()
sc_timestamp	get_earliest_time_after_certain_time (sc_timestamp)
void	erase_notification_time (sc_timestamp)
	sc_event ()
	sc_event (const char *name)
	~sc_event ()
void	cancel ()
const char *	name () const
const char *	basename () const
sc_object *	get_parent_object () const
bool	in_hierarchy () const
void	notify ()
	The immediate notification is not supported by the out-of-order simulation in the current release. More...
void	notify (const sc_time &)
void	notify (double, sc_time_unit)
void	notify_delayed ()
void	notify_delayed (const sc_time &)
void	notify_delayed (double, sc_time_unit)
sc_event_or_expr	operator| (const sc_event &) const
sc_event_or_expr	operator| (const sc_event_or_list &) const
sc_event_and_expr	operator& (const sc_event &) const
sc_event_and_expr	operator& (const sc_event_and_list &) const
const sc_timestamp &	get_notify_timestamp () const
	GET the notification time stamp. More...
void	push_notify_timestamp_list (const sc_timestamp &ts)
const sc_timestamp &	get_notify_timestamp_last () const

Public Attributes
std::set< sc_timestamp >	m_notify_timestamp_set
std::vector< sc_method_handle >	m_methods_static
std::vector< sc_method_handle >	m_methods_dynamic
std::vector< sc_thread_handle >	m_threads_static
std::vector< sc_thread_handle >	m_threads_dynamic
int	m_delta_event_index

Friends
class	sc_clock
class	sc_event_list
class	sc_event_timed
class	sc_simcontext
class	sc_object
class	sc_process_b
class	sc_method_process
class	sc_thread_process
template<typename IF , sc_writer_policy POL>
class	sc_signal
void	sc_thread_cor_fn (void *arg)

Detailed Description

The event class.

Definition at line 260 of file sc_event.h.

Constructor & Destructor Documentation

sc_core::sc_event::sc_event

(

)

sc_core::sc_event::sc_event

(

const char *

name

)

sc_core::sc_event::~sc_event

(

)

Member Function Documentation

const char* sc_core::sc_event::basename

(

)

const

void sc_core::sc_event::cancel

(

)

void sc_core::sc_event::erase_notification_time

(

sc_timestamp

)

sc_timestamp sc_core::sc_event::get_earliest_notification_time

(

)

sc_timestamp sc_core::sc_event::get_earliest_time_after_certain_time

(

sc_timestamp

)

const sc_timestamp& sc_core::sc_event::get_notify_timestamp

(

)

const

GET the notification time stamp.

const sc_timestamp& sc_core::sc_event::get_notify_timestamp_last

(

)

const

sc_object* sc_core::sc_event::get_parent_object ( ) const

inline

Definition at line 296 of file sc_event.h.

bool sc_core::sc_event::in_hierarchy ( ) const

inline

Definition at line 297 of file sc_event.h.

const char* sc_core::sc_event::name ( ) const

inline

Definition at line 294 of file sc_event.h.

void sc_core::sc_event::notify

(

)

The immediate notification is not supported by the out-of-order simulation in the current release.

void sc_core::sc_event::notify

(

const sc_time &

)

void sc_core::sc_event::notify ( double  v, sc_time_unit  tu  )

inline

Definition at line 450 of file sc_event.h.

void sc_core::sc_event::notify_delayed

(

)

void sc_core::sc_event::notify_delayed

(

const sc_time &

)

void sc_core::sc_event::notify_delayed ( double  v, sc_time_unit  tu  )

inline

Definition at line 522 of file sc_event.h.

sc_event_and_expr sc_core::sc_event::operator& ( const sc_event &  e2 ) const

inline

Definition at line 869 of file sc_event.h.

sc_event_and_expr sc_core::sc_event::operator& ( const sc_event_and_list &  e2 ) const

inline

Definition at line 879 of file sc_event.h.

sc_event_or_expr sc_core::sc_event::operator| ( const sc_event &  e2 ) const

inline

Definition at line 751 of file sc_event.h.

sc_event_or_expr sc_core::sc_event::operator| ( const sc_event_or_list &  e2 ) const

inline

Definition at line 761 of file sc_event.h.

void sc_core::sc_event::push_notify_timestamp_list

(

const sc_timestamp &

ts

)

Friends And Related Function Documentation

friend class sc_clock

friend

Definition at line 262 of file sc_event.h.

friend class sc_event_list

friend

Definition at line 263 of file sc_event.h.

friend class sc_event_timed

friend

Definition at line 264 of file sc_event.h.

friend class sc_method_process

friend

Definition at line 268 of file sc_event.h.

friend class sc_object

friend

Definition at line 266 of file sc_event.h.

friend class sc_process_b

friend

Definition at line 267 of file sc_event.h.

template<typename IF , sc_writer_policy POL>

friend class sc_signal

friend

Definition at line 270 of file sc_event.h.

friend class sc_simcontext

friend

Definition at line 265 of file sc_event.h.

void sc_thread_cor_fn ( void *  arg )

friend

friend class sc_thread_process

friend

Definition at line 269 of file sc_event.h.

Member Data Documentation

int sc_core::sc_event::m_delta_event_index

Definition at line 385 of file sc_event.h.

std::vector<sc_method_handle> sc_core::sc_event::m_methods_dynamic

mutable

Definition at line 326 of file sc_event.h.

std::vector<sc_method_handle> sc_core::sc_event::m_methods_static

mutable

Definition at line 325 of file sc_event.h.

std::set<sc_timestamp> sc_core::sc_event::m_notify_timestamp_set

Definition at line 277 of file sc_event.h.

std::vector<sc_thread_handle> sc_core::sc_event::m_threads_dynamic

mutable

Definition at line 328 of file sc_event.h.

std::vector<sc_thread_handle> sc_core::sc_event::m_threads_static

mutable

Definition at line 327 of file sc_event.h.

---

The documentation for this class was generated from the following file:

• sysc/kernel/sc_event.h
