sc_process.h File Reference

#include <string>
#include <cassert>
#include "sysc/utils/sc_iostream.h"
#include "sysc/kernel/sc_constants.h"
#include "sysc/kernel/sc_object.h"
#include "sysc/kernel/sc_kernel_ids.h"
#include "sysc/communication/sc_export.h"
#include <list>
#include <set>
#include "sysc/kernel/sc_cmnhdr.h"
#include <pthread.h>
#include "sysc/kernel/sc_time.h"
#include "sysc/datatypes/int/sc_nbdefs.h"

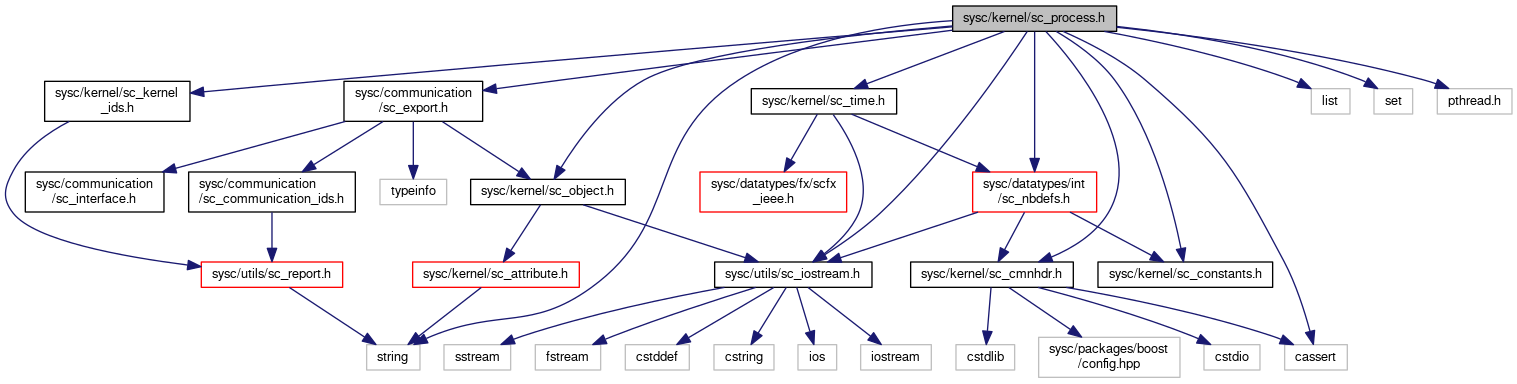

Include dependency graph for sc_process.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	sc_core::sc_process_host
	This is the base class for objects which may have processes defined for their methods (e.g., sc_module). More...
class	sc_core::sc_process_monitor
class	sc_core::sc_throw_it_helper
class	sc_core::sc_throw_it< EXCEPT >
struct	sc_core::sc_chnl_lock
	A data structure to keep the state of a channel lock. More...
class	sc_core::sc_acq_chnl_lock_queue
	A list of channel locks acquired by a process. More...
class	sc_core::sc_timestamp
	A time stamp combining timed cycles and delta cycles. More...
class	sc_core::sc_process_b
	User initiated dynamic process support. More...
struct	sc_core::scoped_flag

Namespaces
	sc_core

Macros
#define	SC_INCLUDE_WINDOWS_H
#define	CHNL_MTX_TYPE_   pthread_mutex_t
#define	CHNL_PTHREAD_NULL_   NULL
#define	CHNL_MTX_INIT_(Mutex)   pthread_mutex_init( &(Mutex), CHNL_PTHREAD_NULL_ )
#define	CHNL_MTX_LOCK_(Mutex)   pthread_mutex_lock( &(Mutex) )
#define	CHNL_MTX_UNLOCK_(Mutex)   pthread_mutex_unlock( &(Mutex) )
#define	CHNL_MTX_TRYLOCK_(Mutex)   ( false )
#define	CHNL_MTX_DESTROY_(Mutex)   pthread_mutex_destroy( &(Mutex) )
#define	_SYSC_PRINT_VERBOSE_MESSAGE_ENV_VAR   "SYSC_PRINT_VERBOSE_MESSAGE"
#define	SC_USE_MEMBER_FUNC_PTR
	Process invocation method or function. More...
#define	SC_DECL_HELPER_STRUCT(callback_tag, func)   /*EMPTY*/
#define	SC_MAKE_FUNC_PTR(callback_tag, func)   static_cast<sc_core::SC_ENTRY_FUNC>(&callback_tag::func)

Typedefs
typedef class sc_cthread_process *	sc_core::sc_cthread_handle
typedef class sc_method_process *	sc_core::sc_method_handle
typedef class sc_thread_process *	sc_core::sc_thread_handle
typedef void(sc_process_host::*	sc_core::SC_ENTRY_FUNC )()
typedef sc_process_b	sc_core::sc_process_b

Enumerations
enum	sc_core::sc_curr_proc_kind { sc_core::SC_NO_PROC_, sc_core::SC_METHOD_PROC_, sc_core::SC_THREAD_PROC_, sc_core::SC_CTHREAD_PROC_ }
enum	sc_core::sc_descendant_inclusion_info { sc_core::SC_NO_DESCENDANTS =0, sc_core::SC_INCLUDE_DESCENDANTS, sc_core::SC_INVALID_DESCENDANTS }

Functions
const char *	sc_core::sc_gen_unique_name (const char *, bool preserve_first)
sc_process_handle	sc_core::sc_get_current_process_handle ()
void	sc_core::sc_thread_cor_fn (void *arg)
bool	sc_core::timed_out (sc_simcontext *)
void	sc_core::sc_set_stack_size (sc_thread_handle, std::size_t)
void	sc_core::sc_set_stack_size (sc_method_handle, std::size_t)

Variables
bool	sc_core::sc_allow_process_control_corners

Macro Definition Documentation

#define _SYSC_PRINT_VERBOSE_MESSAGE_ENV_VAR   "SYSC_PRINT_VERBOSE_MESSAGE"

Definition at line 99 of file sc_process.h.

#define CHNL_MTX_DESTROY_

(

Mutex

)

pthread_mutex_destroy( &(Mutex) )

Definition at line 88 of file sc_process.h.

#define CHNL_MTX_INIT_

(

Mutex

)

pthread_mutex_init( &(Mutex), CHNL_PTHREAD_NULL_ )

Definition at line 73 of file sc_process.h.

#define CHNL_MTX_LOCK_

(

Mutex

)

pthread_mutex_lock( &(Mutex) )

Definition at line 75 of file sc_process.h.

#define CHNL_MTX_TRYLOCK_

(

Mutex

)

( false )

Definition at line 84 of file sc_process.h.

#define CHNL_MTX_TYPE_   pthread_mutex_t

Definition at line 65 of file sc_process.h.

#define CHNL_MTX_UNLOCK_

(

Mutex

)

pthread_mutex_unlock( &(Mutex) )

Definition at line 77 of file sc_process.h.

#define CHNL_PTHREAD_NULL_   NULL

Definition at line 70 of file sc_process.h.

#define SC_DECL_HELPER_STRUCT	(		callback_tag,
			func
	)		/*EMPTY*/

Definition at line 212 of file sc_process.h.

#define SC_INCLUDE_WINDOWS_H

Definition at line 43 of file sc_process.h.

#define SC_MAKE_FUNC_PTR	(		callback_tag,
			func
	)		static_cast<sc_core::SC_ENTRY_FUNC>(&callback_tag::func)

Definition at line 213 of file sc_process.h.

#define SC_USE_MEMBER_FUNC_PTR

Process invocation method or function.

Define SC_USE_MEMBER_FUNC_PTR if we want to use member function pointers to implement process dispatch. Otherwise, we'll use a hack that involves creating a templated invocation object which will invoke the member function. This should not be necessary, but some compilers (e.g., VC++) do not allow the conversion from `void (callback_tag::*)()' to `void (sc_process_host::*)()'. This is supposed to be OK as long as the dynamic type is correct. C++ Standard 5.4 "Explicit type conversion", clause 7: a pointer to member of derived class type may be explicitly converted to a pointer to member of an unambiguous non-virtual base class type.

Definition at line 203 of file sc_process.h.
