sc_core::sc_module Class Reference

Base class for all structural entities. More...

#include <sysc/kernel/sc_module.h>

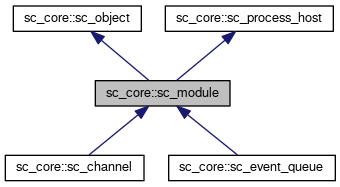

Inheritance diagram for sc_core::sc_module:
Inheritance graph
[legend]

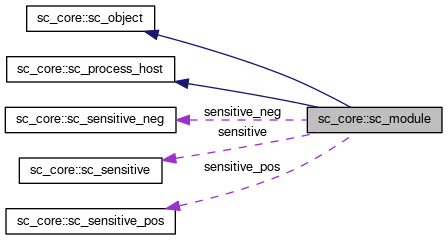

Collaboration diagram for sc_core::sc_module:
Collaboration graph
[legend]

Public Member Functions

sc_simcontext * sc_get_curr_simcontext ()

const char * gen_unique_name (const char *basename_, bool preserve_first)

virtual const char * kind () const

void test_message ()

virtual ~sc_module ()

sc_module & operator<< (sc_interface &)

sc_module & operator<< (sc_port_base &)

sc_module & operator, (sc_interface &interface_)

sc_module & operator, (sc_port_base &port_)

const ::std::vector< sc_object * > & get_child_objects () const

void defunct ()

void operator() (const sc_bind_proxy &p001, const sc_bind_proxy &p002=SC_BIND_PROXY_NIL, const sc_bind_proxy &p003=SC_BIND_PROXY_NIL, const sc_bind_proxy &p004=SC_BIND_PROXY_NIL, const sc_bind_proxy &p005=SC_BIND_PROXY_NIL, const sc_bind_proxy &p006=SC_BIND_PROXY_NIL, const sc_bind_proxy &p007=SC_BIND_PROXY_NIL, const sc_bind_proxy &p008=SC_BIND_PROXY_NIL, const sc_bind_proxy &p009=SC_BIND_PROXY_NIL, const sc_bind_proxy &p010=SC_BIND_PROXY_NIL, const sc_bind_proxy &p011=SC_BIND_PROXY_NIL, const sc_bind_proxy &p012=SC_BIND_PROXY_NIL, const sc_bind_proxy &p013=SC_BIND_PROXY_NIL, const sc_bind_proxy &p014=SC_BIND_PROXY_NIL, const sc_bind_proxy &p015=SC_BIND_PROXY_NIL, const sc_bind_proxy &p016=SC_BIND_PROXY_NIL, const sc_bind_proxy &p017=SC_BIND_PROXY_NIL, const sc_bind_proxy &p018=SC_BIND_PROXY_NIL, const sc_bind_proxy &p019=SC_BIND_PROXY_NIL, const sc_bind_proxy &p020=SC_BIND_PROXY_NIL, const sc_bind_proxy &p021=SC_BIND_PROXY_NIL, const sc_bind_proxy &p022=SC_BIND_PROXY_NIL, const sc_bind_proxy &p023=SC_BIND_PROXY_NIL, const sc_bind_proxy &p024=SC_BIND_PROXY_NIL, const sc_bind_proxy &p025=SC_BIND_PROXY_NIL, const sc_bind_proxy &p026=SC_BIND_PROXY_NIL, const sc_bind_proxy &p027=SC_BIND_PROXY_NIL, const sc_bind_proxy &p028=SC_BIND_PROXY_NIL, const sc_bind_proxy &p029=SC_BIND_PROXY_NIL, const sc_bind_proxy &p030=SC_BIND_PROXY_NIL, const sc_bind_proxy &p031=SC_BIND_PROXY_NIL, const sc_bind_proxy &p032=SC_BIND_PROXY_NIL, const sc_bind_proxy &p033=SC_BIND_PROXY_NIL, const sc_bind_proxy &p034=SC_BIND_PROXY_NIL, const sc_bind_proxy &p035=SC_BIND_PROXY_NIL, const sc_bind_proxy &p036=SC_BIND_PROXY_NIL, const sc_bind_proxy &p037=SC_BIND_PROXY_NIL, const sc_bind_proxy &p038=SC_BIND_PROXY_NIL, const sc_bind_proxy &p039=SC_BIND_PROXY_NIL, const sc_bind_proxy &p040=SC_BIND_PROXY_NIL, const sc_bind_proxy &p041=SC_BIND_PROXY_NIL, const sc_bind_proxy &p042=SC_BIND_PROXY_NIL, const sc_bind_proxy &p043=SC_BIND_PROXY_NIL, const sc_bind_proxy &p044=SC_BIND_PROXY_NIL, const sc_bind_proxy &p045=SC_BIND_PROXY_NIL, const sc_bind_proxy &p046=SC_BIND_PROXY_NIL, const sc_bind_proxy &p047=SC_BIND_PROXY_NIL, const sc_bind_proxy &p048=SC_BIND_PROXY_NIL, const sc_bind_proxy &p049=SC_BIND_PROXY_NIL, const sc_bind_proxy &p050=SC_BIND_PROXY_NIL, const sc_bind_proxy &p051=SC_BIND_PROXY_NIL, const sc_bind_proxy &p052=SC_BIND_PROXY_NIL, const sc_bind_proxy &p053=SC_BIND_PROXY_NIL, const sc_bind_proxy &p054=SC_BIND_PROXY_NIL, const sc_bind_proxy &p055=SC_BIND_PROXY_NIL, const sc_bind_proxy &p056=SC_BIND_PROXY_NIL, const sc_bind_proxy &p057=SC_BIND_PROXY_NIL, const sc_bind_proxy &p058=SC_BIND_PROXY_NIL, const sc_bind_proxy &p059=SC_BIND_PROXY_NIL, const sc_bind_proxy &p060=SC_BIND_PROXY_NIL, const sc_bind_proxy &p061=SC_BIND_PROXY_NIL, const sc_bind_proxy &p062=SC_BIND_PROXY_NIL, const sc_bind_proxy &p063=SC_BIND_PROXY_NIL, const sc_bind_proxy &p064=SC_BIND_PROXY_NIL)

- Public Member Functions inherited from sc_core::sc_object
const char * name () const

const char * basename () const

virtual void print (::std::ostream &os=::std::cout) const

virtual void dump (::std::ostream &os=::std::cout) const

virtual void trace (sc_trace_file *tf) const

sc_simcontext * simcontext () const

bool add_attribute (sc_attr_base &)

sc_attr_base * get_attribute (const std::string &name_)

const sc_attr_base * get_attribute (const std::string &name_) const

sc_attr_base * remove_attribute (const std::string &name_)

void remove_all_attributes ()

int num_attributes () const

sc_attr_cltn & attr_cltn ()

const sc_attr_cltn & attr_cltn () const

virtual const std::vector
< sc_event * > & 		get_child_events () const

sc_object * get_parent () const

sc_object * get_parent_object () const

- Public Member Functions inherited from sc_core::sc_process_host
 sc_process_host ()

virtual ~sc_process_host ()

void defunct ()


Protected Member Functions

virtual void before_end_of_elaboration ()

void construction_done ()

virtual void end_of_elaboration ()

void elaboration_done (bool &)

virtual void start_of_simulation ()

void start_simulation ()

virtual void end_of_simulation ()

void simulation_done ()

void sc_module_init ()

 sc_module ()

 sc_module (const sc_module_name &nm)

 sc_module (const char *nm)

 sc_module (const std::string &nm)

void end_module ()

void dont_initialize ()

void positional_bind (sc_interface &)

void positional_bind (sc_port_base &)

void async_reset_signal_is (const sc_in< bool > &port, bool level)

void async_reset_signal_is (const sc_inout< bool > &port, bool level)

void async_reset_signal_is (const sc_out< bool > &port, bool level)

void async_reset_signal_is (const sc_signal_in_if< bool > &iface, bool level)

void reset_signal_is (const sc_in< bool > &port, bool level)

void reset_signal_is (const sc_inout< bool > &port, bool level)

void reset_signal_is (const sc_out< bool > &port, bool level)

void reset_signal_is (const sc_signal_in_if< bool > &iface, bool level)

void seg_bound ()

void wait (int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_event &e, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_event_or_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_event_and_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, const sc_event &e, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, const sc_event &e, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, const sc_event_or_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, const sc_event_or_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, const sc_event_and_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, const sc_event_and_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger ()
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_event &e)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_event_or_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_event_and_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t, const sc_event &e)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu, const sc_event &e)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t, const sc_event_or_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu, const sc_event_or_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t, const sc_event_and_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu, const sc_event_and_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

bool timed_out ()

void halt (int seg_id)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (int n, int seg_id)
 A new parameter segment ID is added for the out-of-order simulation. More...

void at_posedge (const sc_signal_in_if< bool > &s, int seg_id)
 A new parameter segment ID is added for the out-of-order simulation. More...

void at_posedge (const sc_signal_in_if< sc_dt::sc_logic > &s, int seg_id)
 A new parameter segment ID is added for the out-of-order simulation. More...

void at_negedge (const sc_signal_in_if< bool > &s, int seg_id)
 A new parameter segment ID is added for the out-of-order simulation. More...

void at_negedge (const sc_signal_in_if< sc_dt::sc_logic > &s, int seg_id)
 A new parameter segment ID is added for the out-of-order simulation. More...

void watching (bool)

void set_stack_size (std::size_t)
 Function to set the stack size of the current (c)thread process and method process. More...

int append_port (sc_port_base *)

- Protected Member Functions inherited from sc_core::sc_object
 sc_object ()

 sc_object (const char *nm)

 sc_object (const sc_object &)

sc_object & operator= (const sc_object &)

virtual ~sc_object ()

virtual void add_child_event (sc_event *event_p)

virtual void add_child_object (sc_object *object_p)

virtual bool remove_child_event (sc_event *event_p)

virtual bool remove_child_object (sc_object *object_p)

phase_cb_mask register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask unregister_simulation_phase_callback (phase_cb_mask)


Protected Attributes

sc_sensitive sensitive

sc_sensitive_pos sensitive_pos

sc_sensitive_neg sensitive_neg

int m_instance_id
 Instance ID of this module. More...


Friends

class Invoker

class sc_module_name

class sc_module_registry

class sc_object

class sc_port_registry

class sc_process_b

class sc_simcontext


Additional Inherited Members

- Public Types inherited from sc_core::sc_object
typedef unsigned phase_cb_mask


Detailed Description

Base class for all structural entities.

Definition at line 83 of file sc_module.h.

Constructor & Destructor Documentation

sc_core::sc_module::sc_module ( )
protected
sc_core::sc_module::sc_module ( const sc_module_name &  nm)
protected
sc_core::sc_module::sc_module ( const char *  nm)
protected
sc_core::sc_module::sc_module ( const std::string &  nm)
protected
virtual sc_core::sc_module::~sc_module ( )
virtual

Member Function Documentation

int sc_core::sc_module::append_port ( sc_port_base *  )
protected
void sc_core::sc_module::async_reset_signal_is ( const sc_in< bool > &  port,
bool  level
)
protected
void sc_core::sc_module::async_reset_signal_is ( const sc_inout< bool > &  port,
bool  level
)
protected
void sc_core::sc_module::async_reset_signal_is ( const sc_out< bool > &  port,
bool  level
)
protected
void sc_core::sc_module::async_reset_signal_is ( const sc_signal_in_if< bool > &  iface,
bool  level
)
protected
void sc_core::sc_module::at_negedge ( const sc_signal_in_if< bool > &  s,
int  seg_id
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 444 of file sc_module.h.

void sc_core::sc_module::at_negedge ( const sc_signal_in_if< sc_dt::sc_logic > &  s,
int  seg_id
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 452 of file sc_module.h.

void sc_core::sc_module::at_posedge ( const sc_signal_in_if< bool > &  s,
int  seg_id
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 428 of file sc_module.h.

void sc_core::sc_module::at_posedge ( const sc_signal_in_if< sc_dt::sc_logic > &  s,
int  seg_id
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 436 of file sc_module.h.

virtual void sc_core::sc_module::before_end_of_elaboration ( )
protectedvirtual
void sc_core::sc_module::construction_done ( )
protected
void sc_core::sc_module::defunct ( )
inline

Definition at line 493 of file sc_module.h.

void sc_core::sc_module::dont_initialize ( )
protected
void sc_core::sc_module::elaboration_done ( bool &  )
protected
void sc_core::sc_module::end_module ( )
protected
virtual void sc_core::sc_module::end_of_elaboration ( )
protectedvirtual
virtual void sc_core::sc_module::end_of_simulation ( )
protectedvirtual
const char* sc_core::sc_module::gen_unique_name ( const char *  basename_,
bool  preserve_first
)
const ::std::vector<sc_object*>& sc_core::sc_module::get_child_objects ( ) const
virtual

Reimplemented from sc_core::sc_object.

void sc_core::sc_module::halt ( int  seg_id)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 412 of file sc_module.h.

virtual const char* sc_core::sc_module::kind ( ) const
inlinevirtual

Reimplemented from sc_core::sc_object.

Reimplemented in sc_core::sc_channel, and sc_core::sc_event_queue.

Definition at line 103 of file sc_module.h.

void sc_core::sc_module::next_trigger ( )
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 300 of file sc_module.h.

void sc_core::sc_module::next_trigger ( const sc_event &  e)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 311 of file sc_module.h.

void sc_core::sc_module::next_trigger ( const sc_event_or_list &  el)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 319 of file sc_module.h.

void sc_core::sc_module::next_trigger ( const sc_event_and_list &  el)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 327 of file sc_module.h.

void sc_core::sc_module::next_trigger ( const sc_time &  t)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 335 of file sc_module.h.

void sc_core::sc_module::next_trigger ( double  v,
sc_time_unit  tu
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 343 of file sc_module.h.

void sc_core::sc_module::next_trigger ( const sc_time &  t,
const sc_event &  e
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 352 of file sc_module.h.

void sc_core::sc_module::next_trigger ( double  v,
sc_time_unit  tu,
const sc_event &  e
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 360 of file sc_module.h.

void sc_core::sc_module::next_trigger ( const sc_time &  t,
const sc_event_or_list &  el
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 369 of file sc_module.h.

void sc_core::sc_module::next_trigger ( double  v,
sc_time_unit  tu,
const sc_event_or_list &  el
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 377 of file sc_module.h.

void sc_core::sc_module::next_trigger ( const sc_time &  t,
const sc_event_and_list &  el
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 386 of file sc_module.h.

void sc_core::sc_module::next_trigger ( double  v,
sc_time_unit  tu,
const sc_event_and_list &  el
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 394 of file sc_module.h.

void sc_core::sc_module::operator() ( const sc_bind_proxy &  p001,
const sc_bind_proxy &  p002 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p003 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p004 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p005 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p006 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p007 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p008 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p009 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p010 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p011 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p012 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p013 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p014 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p015 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p016 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p017 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p018 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p019 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p020 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p021 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p022 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p023 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p024 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p025 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p026 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p027 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p028 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p029 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p030 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p031 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p032 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p033 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p034 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p035 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p036 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p037 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p038 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p039 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p040 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p041 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p042 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p043 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p044 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p045 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p046 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p047 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p048 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p049 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p050 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p051 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p052 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p053 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p054 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p055 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p056 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p057 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p058 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p059 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p060 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p061 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p062 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p063 = SC_BIND_PROXY_NIL,
const sc_bind_proxy &  p064 = SC_BIND_PROXY_NIL
)
sc_module& sc_core::sc_module::operator, ( sc_interface &  interface_)
inline

Definition at line 147 of file sc_module.h.

sc_module& sc_core::sc_module::operator, ( sc_port_base &  port_)
inline

Definition at line 150 of file sc_module.h.

sc_module& sc_core::sc_module::operator<< ( sc_interface &  )
sc_module& sc_core::sc_module::operator<< ( sc_port_base &  )
void sc_core::sc_module::positional_bind ( sc_interface &  )
protected
void sc_core::sc_module::positional_bind ( sc_port_base &  )
protected
void sc_core::sc_module::reset_signal_is ( const sc_in< bool > &  port,
bool  level
)
protected
void sc_core::sc_module::reset_signal_is ( const sc_inout< bool > &  port,
bool  level
)
protected
void sc_core::sc_module::reset_signal_is ( const sc_out< bool > &  port,
bool  level
)
protected
void sc_core::sc_module::reset_signal_is ( const sc_signal_in_if< bool > &  iface,
bool  level
)
protected
sc_simcontext* sc_core::sc_module::sc_get_curr_simcontext ( )
inline

Definition at line 97 of file sc_module.h.

void sc_core::sc_module::sc_module_init ( )
protected
void sc_core::sc_module::seg_bound ( )
inlineprotected

Definition at line 183 of file sc_module.h.

void sc_core::sc_module::set_stack_size ( std::size_t  )
protected

Function to set the stack size of the current (c)thread process and method process.

void sc_core::sc_module::simulation_done ( )
protected
virtual void sc_core::sc_module::start_of_simulation ( )
protectedvirtual
void sc_core::sc_module::start_simulation ( )
protected
void sc_core::sc_module::test_message ( )
bool sc_core::sc_module::timed_out ( )
inlineprotected

Definition at line 401 of file sc_module.h.

void sc_core::sc_module::wait ( int  seg_id = -1)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 192 of file sc_module.h.

void sc_core::sc_module::wait ( const sc_event &  e,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 202 of file sc_module.h.

void sc_core::sc_module::wait ( const sc_event_or_list &  el,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 211 of file sc_module.h.

void sc_core::sc_module::wait ( const sc_event_and_list &  el,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 219 of file sc_module.h.

void sc_core::sc_module::wait ( const sc_time &  t,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 227 of file sc_module.h.

void sc_core::sc_module::wait ( double  v,
sc_time_unit  tu,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 235 of file sc_module.h.

void sc_core::sc_module::wait ( const sc_time &  t,
const sc_event &  e,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 244 of file sc_module.h.

void sc_core::sc_module::wait ( double  v,
sc_time_unit  tu,
const sc_event &  e,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 252 of file sc_module.h.

void sc_core::sc_module::wait ( const sc_time &  t,
const sc_event_or_list &  el,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 261 of file sc_module.h.

void sc_core::sc_module::wait ( double  v,
sc_time_unit  tu,
const sc_event_or_list &  el,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 269 of file sc_module.h.

void sc_core::sc_module::wait ( const sc_time &  t,
const sc_event_and_list &  el,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 279 of file sc_module.h.

void sc_core::sc_module::wait ( double  v,
sc_time_unit  tu,
const sc_event_and_list &  el,
int  seg_id = -1
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 287 of file sc_module.h.

void sc_core::sc_module::wait ( int  n,
int  seg_id
)
inlineprotected

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 420 of file sc_module.h.

void sc_core::sc_module::watching ( bool  )
inlineprotected

Definition at line 456 of file sc_module.h.

Friends And Related Function Documentation

friend class Invoker
friend

Definition at line 86 of file sc_module.h.

friend class sc_module_name
friend

Definition at line 88 of file sc_module.h.

friend class sc_module_registry
friend

Definition at line 89 of file sc_module.h.

friend class sc_object
friend

Definition at line 90 of file sc_module.h.

friend class sc_port_registry
friend

Definition at line 91 of file sc_module.h.

friend class sc_process_b
friend

Definition at line 92 of file sc_module.h.

friend class sc_simcontext
friend

Definition at line 93 of file sc_module.h.

Member Data Documentation

int sc_core::sc_module::m_instance_id
protected

Instance ID of this module.

Definition at line 477 of file sc_module.h.

sc_sensitive sc_core::sc_module::sensitive
protected

Definition at line 460 of file sc_module.h.

sc_sensitive_neg sc_core::sc_module::sensitive_neg
protected

Definition at line 462 of file sc_module.h.

sc_sensitive_pos sc_core::sc_module::sensitive_pos
protected

Definition at line 461 of file sc_module.h.

The documentation for this class was generated from the following file:
Generated on Mon Sep 30 2019 13:16:45 for SystemC by   doxygen 1.8.5
