Abstract base class for class sc_port_b. More...

#include <sysc/communication/sc_port.h>

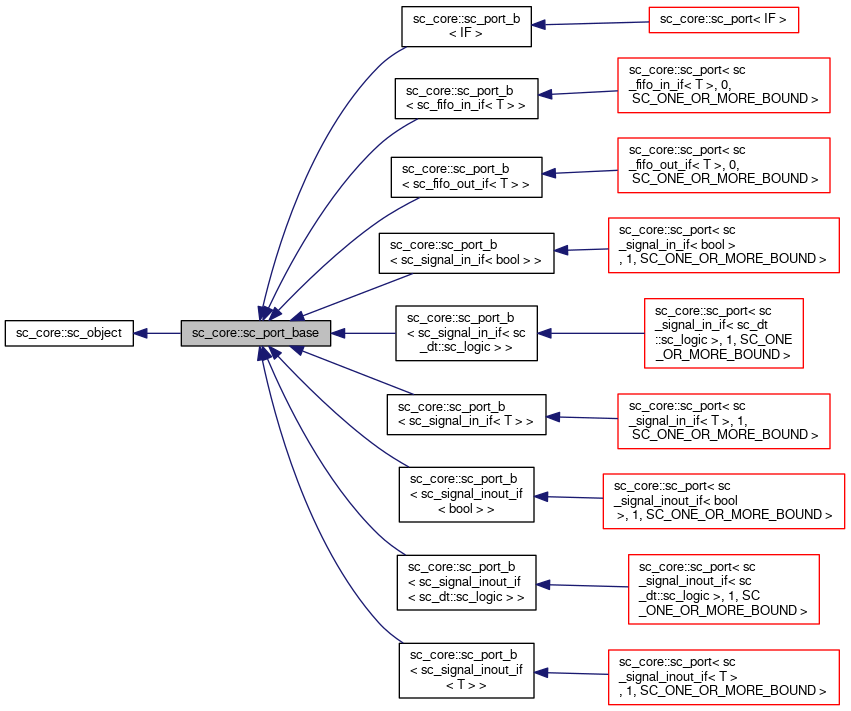

Inheritance diagram for sc_core::sc_port_base:

Collaboration diagram for sc_core::sc_port_base:

Public Types
typedef sc_port_base	this_type

Public Types inherited from sc_core::sc_object
typedef unsigned	phase_cb_mask

Public Member Functions
int	bind_count ()

virtual sc_interface *	get_interface ()=0

virtual const sc_interface *	get_interface () const =0

virtual const char *	kind () const

Public Member Functions inherited from sc_core::sc_object
const char *	name () const

const char *	basename () const

virtual void	print (::std::ostream &os=::std::cout) const

virtual void	dump (::std::ostream &os=::std::cout) const

virtual void	trace (sc_trace_file *tf) const

sc_simcontext *	simcontext () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &name_)

const sc_attr_base *	get_attribute (const std::string &name_) const

sc_attr_base *	remove_attribute (const std::string &name_)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

virtual const std::vector < sc_event * > &	get_child_events () const

virtual const std::vector < sc_object * > &	get_child_objects () const

sc_object *	get_parent () const

sc_object *	get_parent_object () const

Protected Member Functions
	sc_port_base (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

	sc_port_base (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

virtual	~sc_port_base ()

void	bind (sc_interface &interface_)

void	bind (this_type &parent_)

virtual int	vbind (sc_interface &)=0

virtual int	vbind (sc_port_base &)=0

virtual void	add_interface (sc_interface *)=0

virtual int	interface_count ()=0

virtual const char *	if_typename () const =0

virtual void	before_end_of_elaboration ()

virtual void	end_of_elaboration ()

virtual void	start_of_simulation ()

virtual void	end_of_simulation ()

void	report_error (const char id, const char add_msg=0) const

virtual void	make_sensitive (sc_thread_handle, sc_event_finder *=0) const

virtual void	make_sensitive (sc_method_handle, sc_event_finder *=0) const

void	add_static_event (sc_method_handle process_p, const sc_event &event) const

void	add_static_event (sc_thread_handle process_p, const sc_event &event) const

Protected Member Functions inherited from sc_core::sc_object
	sc_object ()

	sc_object (const char *nm)

	sc_object (const sc_object &)

sc_object &	operator= (const sc_object &)

virtual	~sc_object ()

virtual void	add_child_event (sc_event *event_p)

virtual void	add_child_object (sc_object *object_p)

virtual bool	remove_child_event (sc_event *event_p)

virtual bool	remove_child_object (sc_object *object_p)

phase_cb_mask	register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask	unregister_simulation_phase_callback (phase_cb_mask)

Protected Attributes
sc_bind_info *	m_bind_info

Friends
class	sc_module

class	sc_port_registry

class	sc_sensitive

class	sc_sensitive_pos

class	sc_sensitive_neg

Detailed Description

Abstract base class for class sc_port_b.

Definition at line 69 of file sc_port.h.

Member Typedef Documentation

typedef sc_port_base sc_core::sc_port_base::this_type

Definition at line 82 of file sc_port.h.

Constructor & Destructor Documentation

sc_core::sc_port_base::sc_port_base	(	int	max_size_,
		sc_port_policy	policy = `SC_ONE_OR_MORE_BOUND`
	)

explicitprotected

sc_core::sc_port_base::sc_port_base	(	const char *	name_,
		int	max_size_,
		sc_port_policy	policy = `SC_ONE_OR_MORE_BOUND`
	)

protected

virtual sc_core::sc_port_base::~sc_port_base ( )

protectedvirtual

Member Function Documentation

virtual void sc_core::sc_port_base::add_interface ( sc_interface * )

protectedpure virtual

void sc_core::sc_port_base::add_static_event	(	sc_method_handle	process_p,
		const sc_event &	event
	)		const

protected

void sc_core::sc_port_base::add_static_event	(	sc_thread_handle	process_p,
		const sc_event &	event
	)		const

protected

virtual void sc_core::sc_port_base::before_end_of_elaboration ( )

protectedvirtual

void sc_core::sc_port_base::bind ( sc_interface & interface_ )

protected

void sc_core::sc_port_base::bind ( this_type & parent_ )

protected

int sc_core::sc_port_base::bind_count ( )

virtual void sc_core::sc_port_base::end_of_elaboration ( )

protectedvirtual

Reimplemented in sc_core::sc_inout< sc_dt::sc_logic >, sc_core::sc_inout< bool >, sc_core::sc_inout< T >, sc_core::sc_inout< sc_dt::sc_lv< W > >, sc_core::sc_in< sc_dt::sc_logic >, sc_core::sc_in< bool >, sc_core::sc_in< T >, sc_core::sc_in< sc_dt::sc_lv< W > >, sc_core::sc_inout_rv< W >, sc_core::sc_inout_resolved, sc_core::sc_in_rv< W >, and sc_core::sc_in_resolved.

virtual void sc_core::sc_port_base::end_of_simulation ( )

protectedvirtual

virtual sc_interface* sc_core::sc_port_base::get_interface ( )

pure virtual

Implemented in sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, and sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >.

virtual const sc_interface* sc_core::sc_port_base::get_interface ( ) const

pure virtual

Implemented in sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, and sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >.

virtual const char* sc_core::sc_port_base::if_typename ( ) const

protectedpure virtual

virtual int sc_core::sc_port_base::interface_count ( )

protectedpure virtual

virtual const char* sc_core::sc_port_base::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 92 of file sc_port.h.

virtual void sc_core::sc_port_base::make_sensitive	(	sc_thread_handle	,
		sc_event_finder *	= `0`
	)		const

protectedvirtual

Reimplemented in sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, and sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >.

virtual void sc_core::sc_port_base::make_sensitive	(	sc_method_handle	,
		sc_event_finder *	= `0`
	)		const

protectedvirtual

Reimplemented in sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, and sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >.

void sc_core::sc_port_base::report_error	(	const char *	id,
		const char *	add_msg = `0`
	)		const

protected

virtual void sc_core::sc_port_base::start_of_simulation ( )

protectedvirtual

virtual int sc_core::sc_port_base::vbind ( sc_interface & )

protectedpure virtual

virtual int sc_core::sc_port_base::vbind ( sc_port_base & )

protectedpure virtual

Friends And Related Function Documentation

friend class sc_module

friend

Definition at line 72 of file sc_port.h.

friend class sc_port_registry

friend

Definition at line 73 of file sc_port.h.

friend class sc_sensitive

friend

Definition at line 74 of file sc_port.h.

friend class sc_sensitive_neg

friend

Definition at line 76 of file sc_port.h.

friend class sc_sensitive_pos

friend

Definition at line 75 of file sc_port.h.

Member Data Documentation

sc_bind_info* sc_core::sc_port_base::m_bind_info

protected

Definition at line 171 of file sc_port.h.

The documentation for this class was generated from the following file:

sysc/communication/sc_port.h
