#include <sysc/communication/sc_signal_ports.h>

Inheritance diagram for sc_core::sc_out< T >:

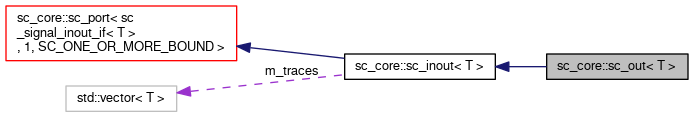

Collaboration diagram for sc_core::sc_out< T >:

Public Types
typedef T	data_type

typedef sc_out< data_type >	this_type

typedef sc_inout< data_type >	base_type

typedef base_type::in_if_type	in_if_type

typedef base_type::in_port_type	in_port_type

typedef base_type::inout_if_type	inout_if_type

typedef base_type::inout_port_type	inout_port_type

Public Types inherited from sc_core::sc_inout< T >
typedef T	data_type

typedef sc_signal_inout_if < data_type >	if_type

typedef sc_port< if_type, 1, SC_ONE_OR_MORE_BOUND >	base_type

typedef sc_inout< data_type >	this_type

typedef sc_signal_in_if < data_type >	in_if_type

typedef sc_port< in_if_type, 1, SC_ONE_OR_MORE_BOUND >	in_port_type

typedef if_type	inout_if_type

typedef base_type	inout_port_type

Public Types inherited from sc_core::sc_port_b< sc_signal_inout_if< T > >
typedef sc_port_base	base_type

typedef sc_port_b < sc_signal_inout_if< T > >	this_type

typedef this_type	port_type

Public Types inherited from sc_core::sc_port_base
typedef sc_port_base	this_type

Public Types inherited from sc_core::sc_object
typedef unsigned	phase_cb_mask

Public Member Functions
	sc_out ()

	sc_out (const char *name_)

	sc_out (inout_if_type &interface_)

	sc_out (const char *name_, inout_if_type &interface_)

	sc_out (inout_port_type &parent_)

	sc_out (const char *name_, inout_port_type &parent_)

	sc_out (this_type &parent_)

	sc_out (const char *name_, this_type &parent_)

virtual	~sc_out ()

this_type &	operator= (const data_type &value_)

this_type &	operator= (const in_if_type &interface_)

this_type &	operator= (const in_port_type &port_)

this_type &	operator= (const inout_port_type &port_)

this_type &	operator= (const this_type &port_)

virtual const char *	kind () const

Public Member Functions inherited from sc_core::sc_inout< T >
	sc_inout ()

	sc_inout (const char *name_)

	sc_inout (inout_if_type &interface_)

	sc_inout (const char *name_, inout_if_type &interface_)

	sc_inout (inout_port_type &parent_)

	sc_inout (const char *name_, inout_port_type &parent_)

	sc_inout (this_type &parent_)

	sc_inout (const char *name_, this_type &parent_)

virtual	~sc_inout ()

const sc_event &	default_event () const

const sc_event &	value_changed_event () const

const data_type &	read () const

	operator const data_type & () const

bool	event () const

void	write (const data_type &value_)

this_type &	operator= (const data_type &value_)

this_type &	operator= (const in_if_type &interface_)

this_type &	operator= (const in_port_type &port_)

this_type &	operator= (const inout_port_type &port_)

this_type &	operator= (const this_type &port_)

void	initialize (const data_type &value_)

void	initialize (const in_if_type &interface_)

virtual void	end_of_elaboration ()

sc_event_finder &	value_changed () const

void	add_trace_internal (sc_trace_file *, const std::string &) const

void	add_trace (sc_trace_file *, const std::string &) const

Public Member Functions inherited from sc_core::sc_port< sc_signal_inout_if< T >, 1, SC_ONE_OR_MORE_BOUND >
	sc_port ()

	sc_port (const char *name_)

	sc_port (sc_signal_inout_if< T > &interface_)

	sc_port (const char *name_, sc_signal_inout_if< T > &interface_)

	sc_port (base_type &parent_)

	sc_port (const char *name_, base_type &parent_)

	sc_port (this_type &parent_)

	sc_port (const char *name_, this_type &parent_)

virtual	~sc_port ()

Public Member Functions inherited from sc_core::sc_port_b< sc_signal_inout_if< T > >
SC_VIRTUAL_ void	bind (sc_signal_inout_if< T > &interface_)

SC_VIRTUAL_ void	bind (port_type &parent_)

void	operator() (sc_signal_inout_if< T > &interface_)

void	operator() (port_type &parent_)

int	size () const

sc_signal_inout_if< T > *	operator-> ()

const sc_signal_inout_if< T > *	operator-> () const

const sc_signal_inout_if< T > *	get_interface (int iface_i) const

sc_signal_inout_if< T > *	get_interface (int iface_i)

virtual sc_interface *	get_interface ()

virtual const sc_interface *	get_interface () const

sc_signal_inout_if< T > *	operator[] (int index_)

const sc_signal_inout_if< T > *	operator[] (int index_) const

Public Member Functions inherited from sc_core::sc_port_base
int	bind_count ()

Public Member Functions inherited from sc_core::sc_object
const char *	name () const

const char *	basename () const

virtual void	print (::std::ostream &os=::std::cout) const

virtual void	dump (::std::ostream &os=::std::cout) const

virtual void	trace (sc_trace_file *tf) const

sc_simcontext *	simcontext () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &name_)

const sc_attr_base *	get_attribute (const std::string &name_) const

sc_attr_base *	remove_attribute (const std::string &name_)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

virtual const std::vector < sc_event * > &	get_child_events () const

virtual const std::vector < sc_object * > &	get_child_objects () const

sc_object *	get_parent () const

sc_object *	get_parent_object () const

Additional Inherited Members
Protected Member Functions inherited from sc_core::sc_inout< T >
void	remove_traces () const

Protected Member Functions inherited from sc_core::sc_port_b< sc_signal_inout_if< T > >
	sc_port_b (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

	sc_port_b (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

virtual	~sc_port_b ()

virtual int	vbind (sc_interface &)

virtual int	vbind (sc_port_base &)

virtual void	make_sensitive (sc_thread_handle, sc_event_finder *=0) const

virtual void	make_sensitive (sc_method_handle, sc_event_finder *=0) const

Protected Member Functions inherited from sc_core::sc_port_base
	sc_port_base (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

	sc_port_base (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

virtual	~sc_port_base ()

void	bind (sc_interface &interface_)

void	bind (this_type &parent_)

virtual void	before_end_of_elaboration ()

virtual void	start_of_simulation ()

virtual void	end_of_simulation ()

void	report_error (const char id, const char add_msg=0) const

void	add_static_event (sc_method_handle process_p, const sc_event &event) const

void	add_static_event (sc_thread_handle process_p, const sc_event &event) const

Protected Member Functions inherited from sc_core::sc_object
	sc_object ()

	sc_object (const char *nm)

	sc_object (const sc_object &)

sc_object &	operator= (const sc_object &)

virtual	~sc_object ()

virtual void	add_child_event (sc_event *event_p)

virtual void	add_child_object (sc_object *object_p)

virtual bool	remove_child_event (sc_event *event_p)

virtual bool	remove_child_object (sc_object *object_p)

phase_cb_mask	register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask	unregister_simulation_phase_callback (phase_cb_mask)

Protected Attributes inherited from sc_core::sc_inout< T >
data_type *	m_init_val

sc_trace_params_vec *	m_traces

Protected Attributes inherited from sc_core::sc_port_base
sc_bind_info *	m_bind_info

Detailed Description

template<class T>
class sc_core::sc_out< T >

Definition at line 1801 of file sc_signal_ports.h.

Member Typedef Documentation

template<class T>

typedef sc_inout<data_type> sc_core::sc_out< T >::base_type

Definition at line 1811 of file sc_signal_ports.h.

template<class T>

typedef T sc_core::sc_out< T >::data_type

Definition at line 1808 of file sc_signal_ports.h.

template<class T>

typedef base_type::in_if_type sc_core::sc_out< T >::in_if_type

Definition at line 1813 of file sc_signal_ports.h.

template<class T>

typedef base_type::in_port_type sc_core::sc_out< T >::in_port_type

Definition at line 1814 of file sc_signal_ports.h.

template<class T>

typedef base_type::inout_if_type sc_core::sc_out< T >::inout_if_type

Definition at line 1815 of file sc_signal_ports.h.

template<class T>

typedef base_type::inout_port_type sc_core::sc_out< T >::inout_port_type

Definition at line 1816 of file sc_signal_ports.h.

template<class T>

typedef sc_out<data_type> sc_core::sc_out< T >::this_type

Definition at line 1810 of file sc_signal_ports.h.

Constructor & Destructor Documentation

template<class T>

sc_core::sc_out< T >::sc_out ( )

inline

Definition at line 1822 of file sc_signal_ports.h.

template<class T>

sc_core::sc_out< T >::sc_out ( const char * name_ )

inlineexplicit

Definition at line 1826 of file sc_signal_ports.h.

template<class T>

sc_core::sc_out< T >::sc_out ( inout_if_type & interface_ )

inlineexplicit

Definition at line 1830 of file sc_signal_ports.h.

template<class T>

sc_core::sc_out< T >::sc_out	(	const char *	name_,
		inout_if_type &	interface_
	)

inline

Definition at line 1834 of file sc_signal_ports.h.

template<class T>

sc_core::sc_out< T >::sc_out ( inout_port_type & parent_ )

inlineexplicit

Definition at line 1838 of file sc_signal_ports.h.

template<class T>

sc_core::sc_out< T >::sc_out	(	const char *	name_,
		inout_port_type &	parent_
	)

inline

Definition at line 1842 of file sc_signal_ports.h.

template<class T>

sc_core::sc_out< T >::sc_out ( this_type & parent_ )

inline

Definition at line 1846 of file sc_signal_ports.h.

template<class T>

sc_core::sc_out< T >::sc_out	(	const char *	name_,
		this_type &	parent_
	)

inline

Definition at line 1850 of file sc_signal_ports.h.

template<class T>

virtual sc_core::sc_out< T >::~sc_out ( )

inlinevirtual

Definition at line 1857 of file sc_signal_ports.h.

Member Function Documentation

template<class T>

virtual const char* sc_core::sc_out< T >::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_inout< T >.

Definition at line 1878 of file sc_signal_ports.h.

template<class T>

this_type& sc_core::sc_out< T >::operator= ( const data_type & value_ )

inline

Definition at line 1863 of file sc_signal_ports.h.

template<class T>

this_type& sc_core::sc_out< T >::operator= ( const in_if_type & interface_ )

inline

Definition at line 1866 of file sc_signal_ports.h.

template<class T>

this_type& sc_core::sc_out< T >::operator= ( const in_port_type & port_ )

inline

Definition at line 1869 of file sc_signal_ports.h.

template<class T>

this_type& sc_core::sc_out< T >::operator= ( const inout_port_type & port_ )

inline

Definition at line 1872 of file sc_signal_ports.h.

template<class T>

this_type& sc_core::sc_out< T >::operator= ( const this_type & port_ )

inline

Definition at line 1875 of file sc_signal_ports.h.

The documentation for this class was generated from the following file:

sysc/communication/sc_signal_ports.h
