sc_core::sc_thread_process Class Reference

A thread process. More...

#include <sysc/kernel/sc_thread_process.h>

Inheritance diagram for sc_core::sc_thread_process:

[legend]

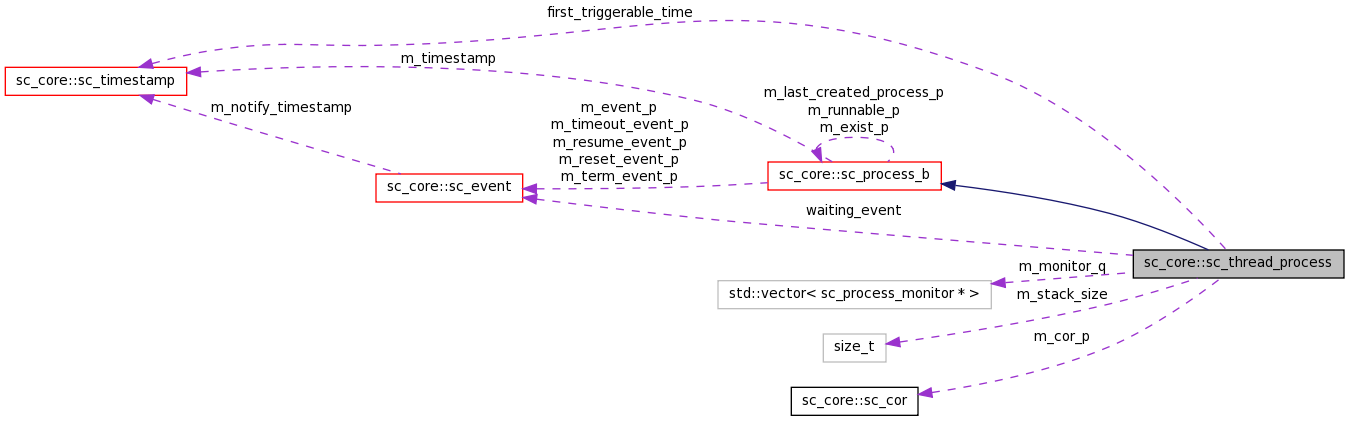

Collaboration diagram for sc_core::sc_thread_process:

[legend]

List of all members.

Public Member Functions
	sc_thread_process (const char name_p, bool free_host, SC_ENTRY_FUNC method_p, sc_process_host host_p, const sc_spawn_options *opt_p)
virtual const char *	kind () const
bool	is_and_list_triggered ()
	return true if the thread is and_list_event triggered
void	aux_boundary ()
Public Attributes
sc_event *	waiting_event
sc_timestamp	first_triggerable_time
Protected Member Functions
virtual	~sc_thread_process ()
virtual void	disable_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
virtual void	enable_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
virtual void	kill_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
sc_thread_handle	next_exist ()
sc_thread_handle	next_runnable ()
virtual void	prepare_for_simulation ()
virtual void	resume_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
void	set_next_exist (sc_thread_handle next_p)
void	set_next_runnable (sc_thread_handle next_p)
void	set_stack_size (std::size_t size)
void	suspend_me ()
virtual void	suspend_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
virtual void	throw_reset (bool async)
virtual void	throw_user (const sc_throw_it_helper &helper, sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
bool	trigger_dynamic (sc_event *)
bool	can_be_triggered (sc_timestamp, sc_event *, int)
void	trigger_static (sc_event *)
	A new parameter is added to update the local time stamp in the thread process.
void	wait (const sc_event &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_event_or_list &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_event_and_list &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_time &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_time &, const sc_event &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_time &, const sc_event_or_list &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_time &, const sc_event_and_list &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait_cycles (int, int n=1)
	A new parameter segment ID is added for the out-of-order simulation.
void	add_monitor (sc_process_monitor *monitor_p)
void	remove_monitor (sc_process_monitor *monitor_p)
void	signal_monitors (int type=0)
Protected Attributes
sc_cor *	m_cor_p
std::vector< sc_process_monitor * >	m_monitor_q
std::size_t	m_stack_size
int	m_wait_cycle_n
Friends
class	sc_event
class	sc_join
class	sc_module
class	sc_channel
class	sc_process_b
class	sc_process_handle
class	sc_process_table
class	sc_simcontext
class	sc_runnable
void	sc_thread_cor_fn (void *)
void	sc_set_stack_size (sc_thread_handle, std::size_t)
sc_cor *	get_cor_pointer (sc_process_b *process_p)
void	wait (int, sc_simcontext *)
void	wait (const sc_event &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_event_or_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_event_and_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_time &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_time &, const sc_event &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_time &, const sc_event_or_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	wait (const sc_time &, const sc_event_and_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.

Detailed Description

A thread process.

Definition at line 96 of file sc_thread_process.h.

Constructor & Destructor Documentation

sc_core::sc_thread_process::sc_thread_process	(	const char *	name_p,
		bool	free_host,
		SC_ENTRY_FUNC	method_p,
		sc_process_host *	host_p,
		const sc_spawn_options *	opt_p
	)

virtual sc_core::sc_thread_process::~sc_thread_process ( ) [protected, virtual]

Member Function Documentation

void sc_core::sc_thread_process::add_monitor ( sc_process_monitor * monitor_p ) [inline, protected]

Definition at line 791 of file sc_thread_process.h.

void sc_core::sc_thread_process::aux_boundary ( ) [inline]

Definition at line 447 of file sc_thread_process.h.

bool sc_core::sc_thread_process::can_be_triggered	(	sc_timestamp	,
		sc_event *	,
		int
	)			`[protected]`

virtual void sc_core::sc_thread_process::disable_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

virtual void sc_core::sc_thread_process::enable_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

bool sc_core::sc_thread_process::is_and_list_triggered ( )

return true if the thread is and_list_event triggered

virtual void sc_core::sc_thread_process::kill_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

virtual const char* sc_core::sc_thread_process::kind ( ) const [inline, virtual]

Reimplemented from sc_core::sc_object.

Reimplemented in sc_core::sc_cthread_process.

Definition at line 132 of file sc_thread_process.h.

sc_thread_handle sc_core::sc_thread_process::next_exist ( ) [inline, protected]

Definition at line 819 of file sc_thread_process.h.

sc_thread_handle sc_core::sc_thread_process::next_runnable ( ) [inline, protected]

Definition at line 831 of file sc_thread_process.h.

virtual void sc_core::sc_thread_process::prepare_for_simulation ( ) [protected, virtual]

void sc_core::sc_thread_process::remove_monitor ( sc_process_monitor * monitor_p ) [inline, protected]

Definition at line 798 of file sc_thread_process.h.

virtual void sc_core::sc_thread_process::resume_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

void sc_core::sc_thread_process::set_next_exist ( sc_thread_handle next_p ) [inline, protected]

Definition at line 813 of file sc_thread_process.h.

void sc_core::sc_thread_process::set_next_runnable ( sc_thread_handle next_p ) [inline, protected]

Definition at line 825 of file sc_thread_process.h.

void sc_core::sc_thread_process::set_stack_size ( std::size_t size ) [inline, protected]

Definition at line 254 of file sc_thread_process.h.

void sc_core::sc_thread_process::signal_monitors ( int type = 0 ) [protected]

void sc_core::sc_thread_process::suspend_me ( ) [inline, protected]

Definition at line 279 of file sc_thread_process.h.

virtual void sc_core::sc_thread_process::suspend_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

virtual void sc_core::sc_thread_process::throw_reset ( bool async ) [protected, virtual]

Implements sc_core::sc_process_b.

virtual void sc_core::sc_thread_process::throw_user	(	const sc_throw_it_helper &	helper,
		sc_descendant_inclusion_info	descendants = `SC_NO_DESCENDANTS`
	)			`[protected, virtual]`

Implements sc_core::sc_process_b.

bool sc_core::sc_thread_process::trigger_dynamic ( sc_event * ) [protected]

void sc_core::sc_thread_process::trigger_static ( sc_event * e ) [inline, protected]

A new parameter is added to update the local time stamp in the thread process.

Definition at line 856 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_time &	t,
		const sc_event_and_list &	el,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 716 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_time &	t,
		const sc_event_or_list &	el,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 683 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_time &	t,
		const sc_event &	e,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 650 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_time &	t,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 605 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_event_and_list &	el,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 565 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_event_or_list &	el,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 534 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait	(	const sc_event &	e,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 489 of file sc_thread_process.h.

void sc_core::sc_thread_process::wait_cycles	(	int	seg_id,
		int	n = `1`
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 759 of file sc_thread_process.h.

Friends And Related Function Documentation

sc_cor* get_cor_pointer ( sc_process_b * process_p ) [friend]

friend class sc_channel [friend]

Reimplemented from sc_core::sc_process_b.

Reimplemented in sc_core::sc_cthread_process.

Definition at line 104 of file sc_thread_process.h.

friend class sc_event [friend]

Reimplemented from sc_core::sc_object.

Definition at line 99 of file sc_thread_process.h.

friend class sc_join [friend]

Definition at line 100 of file sc_thread_process.h.

friend class sc_module [friend]

Reimplemented from sc_core::sc_process_b.

Reimplemented in sc_core::sc_cthread_process.

Definition at line 101 of file sc_thread_process.h.

friend class sc_process_b [friend]

Reimplemented from sc_core::sc_object.

Definition at line 106 of file sc_thread_process.h.

friend class sc_process_handle [friend]

Reimplemented from sc_core::sc_process_b.

Reimplemented in sc_core::sc_cthread_process.

Definition at line 107 of file sc_thread_process.h.

friend class sc_process_table [friend]

Reimplemented in sc_core::sc_cthread_process.

Definition at line 108 of file sc_thread_process.h.

friend class sc_runnable [friend]

Reimplemented from sc_core::sc_process_b.

Definition at line 110 of file sc_thread_process.h.

void sc_set_stack_size	(	sc_thread_handle	,
		std::size_t
	)			`[friend]`

friend class sc_simcontext [friend]

Reimplemented from sc_core::sc_process_b.

Reimplemented in sc_core::sc_cthread_process.

Definition at line 109 of file sc_thread_process.h.

void sc_thread_cor_fn ( void * ) [friend]

Reimplemented from sc_core::sc_process_b.

void wait	(	const sc_time &	,
		const sc_event_and_list &	,
		int	,
		sc_simcontext *
	)			`[friend]`

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_time &	,
		const sc_event_or_list &	,
		int	,
		sc_simcontext *
	)			`[friend]`

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_time &	,
		const sc_event &	,
		int	,
		sc_simcontext *
	)			`[friend]`

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_time &	,
		int	,
		sc_simcontext *
	)			`[friend]`

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_event_and_list &	,
		int	,
		sc_simcontext *
	)			`[friend]`

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_event_or_list &	,
		int	,
		sc_simcontext *
	)			`[friend]`

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	const sc_event &	,
		int	,
		sc_simcontext *
	)			`[friend]`

A new parameter segment ID is added for the out-of-order simulation.

void wait	(	int	,
		sc_simcontext *
	)			`[friend]`

Member Data Documentation

sc_timestamp sc_core::sc_thread_process::first_triggerable_time

Definition at line 127 of file sc_thread_process.h.

sc_cor* sc_core::sc_thread_process::m_cor_p [protected]

Definition at line 239 of file sc_thread_process.h.

std::vector<sc_process_monitor*> sc_core::sc_thread_process::m_monitor_q [protected]

Definition at line 240 of file sc_thread_process.h.

std::size_t sc_core::sc_thread_process::m_stack_size [protected]

Definition at line 241 of file sc_thread_process.h.

int sc_core::sc_thread_process::m_wait_cycle_n [protected]

Definition at line 242 of file sc_thread_process.h.

sc_event* sc_core::sc_thread_process::waiting_event

Definition at line 126 of file sc_thread_process.h.

The documentation for this class was generated from the following file:

sysc/kernel/sc_thread_process.h

sc_core::sc_thread_process Class Reference

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
