sc_core::sc_process_handle Class Reference

This class provides access to an sc_process_b object instance in a manner which allows some persistence after the deletion of the actual process. More...

#include <sysc/kernel/sc_process_handle.h>

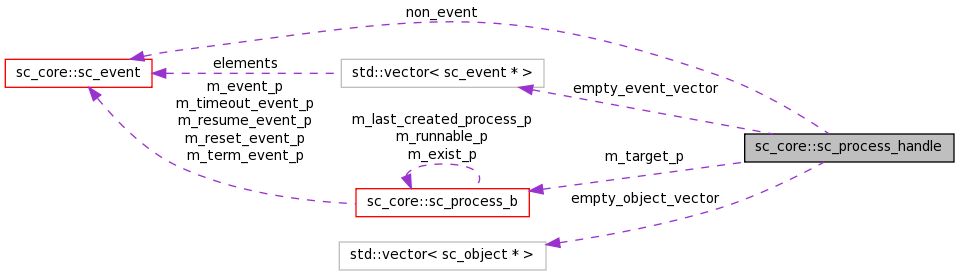

Collaboration diagram for sc_core::sc_process_handle:

[legend]

List of all members.

Public Member Functions
	sc_process_handle ()
	sc_process_handle (sc_object *object_p)
	sc_process_handle (sc_process_b *process_p)
	sc_process_handle (const sc_process_handle &orig)
	~sc_process_handle ()
sc_process_handle &	operator= (sc_process_handle src)
void	swap (sc_process_handle &other)
void	disable (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
bool	dynamic () const
void	enable (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
const std::vector< sc_event * > &	get_child_events () const
const std::vector< sc_object * > &	get_child_objects () const
sc_object *	get_parent_object () const
sc_object *	get_process_object () const
bool	is_unwinding () const
void	kill (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
const char *	name () const
sc_curr_proc_kind	proc_kind () const
void	reset (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
sc_event &	reset_event () const
void	resume (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
void	suspend (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
void	sync_reset_off (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
void	sync_reset_on (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
sc_event &	terminated_event ()
bool	terminated () const
template<typename EXCEPT >
void	throw_it (const EXCEPT &exception, sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
bool	valid () const
std::string	dump_state () const
	operator sc_process_b * ()
	operator sc_cthread_handle ()
	operator sc_method_handle ()
	operator sc_thread_handle ()
Protected Member Functions
bool	dont_initialize () const
void	dont_initialize (bool dont)
Protected Attributes
sc_process_b *	m_target_p
Static Protected Attributes
static std::vector< sc_event * >	empty_event_vector
static std::vector< sc_object * >	empty_object_vector
static sc_event	non_event
Friends
class	sc_object
class	sc_join
class	sc_module
class	sc_channel
class	sc_reset
class	sc_sensitive
class	sc_sensitive_pos
class	sc_sensitive_neg
class	sc_thread_process
bool	operator== (const this_type &left, const this_type &right)
bool	operator!= (const this_type &left, const this_type &right)
bool	operator< (const this_type &left, const this_type &right)

Detailed Description

This class provides access to an sc_process_b object instance in a manner which allows some persistence after the deletion of the actual process.

Definition at line 64 of file sc_process_handle.h.

Constructor & Destructor Documentation

sc_core::sc_process_handle::sc_process_handle ( ) [inline]

Definition at line 175 of file sc_process_handle.h.

sc_core::sc_process_handle::sc_process_handle ( sc_object * object_p ) [inline, explicit]

Definition at line 187 of file sc_process_handle.h.

sc_core::sc_process_handle::sc_process_handle ( sc_process_b * process_p ) [inline, explicit]

Definition at line 201 of file sc_process_handle.h.

sc_core::sc_process_handle::sc_process_handle ( const sc_process_handle & orig ) [inline]

Definition at line 215 of file sc_process_handle.h.

sc_core::sc_process_handle::~sc_process_handle ( ) [inline]

Definition at line 250 of file sc_process_handle.h.

Member Function Documentation

void sc_core::sc_process_handle::disable ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [inline]

Definition at line 263 of file sc_process_handle.h.

void sc_core::sc_process_handle::dont_initialize ( bool dont ) [inline, protected]

Definition at line 273 of file sc_process_handle.h.

bool sc_core::sc_process_handle::dont_initialize ( ) const [inline, protected]

Definition at line 129 of file sc_process_handle.h.

std::string sc_core::sc_process_handle::dump_state ( ) const [inline]

Definition at line 283 of file sc_process_handle.h.

bool sc_core::sc_process_handle::dynamic ( ) const [inline]

Definition at line 290 of file sc_process_handle.h.

void sc_core::sc_process_handle::enable ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [inline]

Definition at line 297 of file sc_process_handle.h.

const std::vector< sc_event * > & sc_core::sc_process_handle::get_child_events ( ) const [inline]

Definition at line 308 of file sc_process_handle.h.

const std::vector< sc_object * > & sc_core::sc_process_handle::get_child_objects ( ) const [inline]

Definition at line 316 of file sc_process_handle.h.

sc_object * sc_core::sc_process_handle::get_parent_object ( ) const [inline]

Definition at line 323 of file sc_process_handle.h.

sc_object * sc_core::sc_process_handle::get_process_object ( ) const [inline]

Definition at line 330 of file sc_process_handle.h.

bool sc_core::sc_process_handle::is_unwinding ( ) const [inline]

Definition at line 337 of file sc_process_handle.h.

void sc_core::sc_process_handle::kill ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [inline]

Definition at line 349 of file sc_process_handle.h.

const char * sc_core::sc_process_handle::name ( ) const [inline]

Definition at line 359 of file sc_process_handle.h.

sc_core::sc_process_handle::operator sc_cthread_handle ( )

sc_core::sc_process_handle::operator sc_method_handle ( )

sc_core::sc_process_handle::operator sc_process_b * ( ) [inline]

Definition at line 134 of file sc_process_handle.h.

sc_core::sc_process_handle::operator sc_thread_handle ( )

sc_process_handle & sc_core::sc_process_handle::operator= ( sc_process_handle src ) [inline]

Definition at line 237 of file sc_process_handle.h.

sc_curr_proc_kind sc_core::sc_process_handle::proc_kind ( ) const [inline]

Definition at line 366 of file sc_process_handle.h.

void sc_core::sc_process_handle::reset ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [inline]

Definition at line 373 of file sc_process_handle.h.

sc_event & sc_core::sc_process_handle::reset_event ( ) const [inline]

Definition at line 384 of file sc_process_handle.h.

void sc_core::sc_process_handle::resume ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [inline]

Definition at line 397 of file sc_process_handle.h.

void sc_core::sc_process_handle::suspend ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [inline]

Definition at line 407 of file sc_process_handle.h.

void sc_core::sc_process_handle::swap ( sc_process_handle & other ) [inline]

Definition at line 417 of file sc_process_handle.h.

void sc_core::sc_process_handle::sync_reset_off ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [inline]

Definition at line 426 of file sc_process_handle.h.

void sc_core::sc_process_handle::sync_reset_on ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [inline]

Definition at line 438 of file sc_process_handle.h.

bool sc_core::sc_process_handle::terminated ( ) const [inline]

Definition at line 454 of file sc_process_handle.h.

sc_event & sc_core::sc_process_handle::terminated_event ( ) [inline]

Definition at line 461 of file sc_process_handle.h.

template<typename EXCEPT >

void sc_core::sc_process_handle::throw_it	(	const EXCEPT &	exception,
		sc_descendant_inclusion_info	descendants = `SC_NO_DESCENDANTS`
	)			`[inline]`

Definition at line 498 of file sc_process_handle.h.

bool sc_core::sc_process_handle::valid ( ) const [inline]

Definition at line 474 of file sc_process_handle.h.

Friends And Related Function Documentation

bool operator!=	(	const this_type &	left,
		const this_type &	right
	)			`[friend]`

bool operator<	(	const this_type &	left,
		const this_type &	right
	)			`[friend]`

bool operator==	(	const this_type &	left,
		const this_type &	right
	)			`[friend]`

friend class sc_channel [friend]

Definition at line 75 of file sc_process_handle.h.

friend class sc_join [friend]

Definition at line 71 of file sc_process_handle.h.

friend class sc_module [friend]

Definition at line 72 of file sc_process_handle.h.

friend class sc_object [friend]

Definition at line 70 of file sc_process_handle.h.

friend class sc_reset [friend]

Definition at line 77 of file sc_process_handle.h.

friend class sc_sensitive [friend]

Definition at line 78 of file sc_process_handle.h.

friend class sc_sensitive_neg [friend]

Definition at line 80 of file sc_process_handle.h.

friend class sc_sensitive_pos [friend]

Definition at line 79 of file sc_process_handle.h.

friend class sc_thread_process [friend]

Definition at line 81 of file sc_process_handle.h.

Member Data Documentation

std::vector<sc_event*> sc_core::sc_process_handle::empty_event_vector [static, protected]

Definition at line 144 of file sc_process_handle.h.

std::vector<sc_object*> sc_core::sc_process_handle::empty_object_vector [static, protected]

Definition at line 145 of file sc_process_handle.h.

sc_process_b* sc_core::sc_process_handle::m_target_p [protected]

Definition at line 141 of file sc_process_handle.h.

sc_event sc_core::sc_process_handle::non_event [static, protected]

Definition at line 146 of file sc_process_handle.h.

The documentation for this class was generated from the following file:

sysc/kernel/sc_process_handle.h
