sc_core::wif_trace_file Class Reference

#include <sysc/tracing/sc_wif_trace.h>

Inheritance diagram for sc_core::wif_trace_file:

[legend]

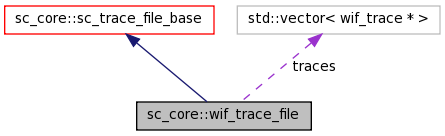

Collaboration diagram for sc_core::wif_trace_file:

[legend]

List of all members.

Public Types
enum	wif_enum { WIF_BIT = 0, WIF_MVL = 1, WIF_REAL = 2, WIF_LAST }
Public Member Functions
	wif_trace_file (const char *name)
	~wif_trace_file ()
std::string	obtain_name ()
Public Attributes
std::vector< wif_trace * >	traces
Protected Member Functions
void	trace (const bool &object, const std::string &name)
void	trace (const sc_dt::sc_bit &object, const std::string &name)
void	trace (const sc_dt::sc_logic &object, const std::string &name)
void	trace (const unsigned char &object, const std::string &name, int width)
void	trace (const unsigned short &object, const std::string &name, int width)
void	trace (const unsigned int &object, const std::string &name, int width)
void	trace (const unsigned long &object, const std::string &name, int width)
void	trace (const char &object, const std::string &name, int width)
void	trace (const short &object, const std::string &name, int width)
void	trace (const int &object, const std::string &name, int width)
void	trace (const long &object, const std::string &name, int width)
void	trace (const sc_dt::int64 &object, const std::string &name, int width)
void	trace (const sc_dt::uint64 &object, const std::string &name, int width)
void	trace (const float &object, const std::string &name)
void	trace (const double &object, const std::string &name)
void	trace (const sc_dt::sc_unsigned &object, const std::string &name)
void	trace (const sc_dt::sc_signed &object, const std::string &name)
void	trace (const sc_dt::sc_uint_base &object, const std::string &name)
void	trace (const sc_dt::sc_int_base &object, const std::string &name)
void	trace (const sc_dt::sc_fxval &object, const std::string &name)
void	trace (const sc_dt::sc_fxval_fast &object, const std::string &name)
void	trace (const sc_dt::sc_fxnum &object, const std::string &name)
void	trace (const sc_dt::sc_fxnum_fast &object, const std::string &name)
template<class T >
void	traceT (const T &object, const std::string &name, wif_enum type)
virtual void	trace (const sc_dt::sc_bv_base &object, const std::string &name)
virtual void	trace (const sc_dt::sc_lv_base &object, const std::string &name)
void	trace (const unsigned &object, const std::string &name, const char **enum_literals)
void	write_comment (const std::string &comment)
void	cycle (bool delta_cycle)

---

Detailed Description

Definition at line 69 of file sc_wif_trace.h.

---

Member Enumeration Documentation

enum sc_core::wif_trace_file::wif_enum

Enumerator:

WIF_BIT
WIF_MVL
WIF_REAL
WIF_LAST

Definition at line 73 of file sc_wif_trace.h.

---

Constructor & Destructor Documentation

sc_core::wif_trace_file::wif_trace_file

(

const char *

name

)

[explicit]

sc_core::wif_trace_file::~wif_trace_file

(

)

---

Member Function Documentation

void sc_core::wif_trace_file::cycle

(

bool

delta_cycle

)

[protected, virtual]

Implements sc_core::sc_trace_file.

std::string sc_core::wif_trace_file::obtain_name

(

)

void sc_core::wif_trace_file::trace	(	const unsigned &	object,
		const std::string &	name,
		const char **	enum_literals
	)			[protected]

virtual void sc_core::wif_trace_file::trace	(	const sc_dt::sc_lv_base &	object,
		const std::string &	name
	)			[protected, virtual]

virtual void sc_core::wif_trace_file::trace	(	const sc_dt::sc_bv_base &	object,
		const std::string &	name
	)			[protected, virtual]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_fxnum_fast &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_fxnum &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_fxval_fast &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_fxval &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_int_base &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_uint_base &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_signed &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_unsigned &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const double &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const float &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::uint64 &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::int64 &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const long &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const int &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const short &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const char &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const unsigned long &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const unsigned int &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const unsigned short &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const unsigned char &	object,
		const std::string &	name,
		int	width
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_logic &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const sc_dt::sc_bit &	object,
		const std::string &	name
	)			[protected]

void sc_core::wif_trace_file::trace	(	const bool &	object,
		const std::string &	name
	)			[protected]

template<class T >

void sc_core::wif_trace_file::traceT	(	const T &	object,
		const std::string &	name,
		wif_enum	type
	)			[inline, protected]

Definition at line 166 of file sc_wif_trace.h.

void sc_core::wif_trace_file::write_comment

(

const std::string &

comment

)

[protected, virtual]

Implements sc_core::sc_trace_file.

---

Member Data Documentation

std::vector<wif_trace*> sc_core::wif_trace_file::traces

Definition at line 214 of file sc_wif_trace.h.

---

The documentation for this class was generated from the following file:

• sysc/tracing/sc_wif_trace.h
