sc_core::wif_trace_file Class Reference

#include <sysc/tracing/sc_wif_trace.h>

Inheritance diagram for sc_core::wif_trace_file:
Inheritance graph
[legend]

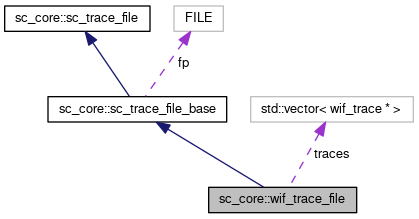

Collaboration diagram for sc_core::wif_trace_file:
Collaboration graph
[legend]

Public Types

enum  wif_enum { WIF_BIT =0, WIF_MVL =1, WIF_REAL =2, WIF_LAST }


Public Member Functions

 wif_trace_file (const char *name)

 ~wif_trace_file ()

std::string obtain_name ()

- Public Member Functions inherited from sc_core::sc_trace_file_base
const char * filename () const

bool delta_cycles () const

virtual void delta_cycles (bool flag)

virtual void set_time_unit (double v, sc_time_unit tu)

- Public Member Functions inherited from sc_core::sc_trace_file
 sc_trace_file ()

virtual void trace (const unsigned int &object, const std::string &name, const char **enum_literals)=0

virtual void space (int n)


Public Attributes

std::vector< wif_trace * > traces


Protected Member Functions

void trace (const bool &object, const std::string &name)

void trace (const sc_dt::sc_bit &object, const std::string &name)

void trace (const sc_dt::sc_logic &object, const std::string &name)

void trace (const unsigned char &object, const std::string &name, int width)

void trace (const unsigned short &object, const std::string &name, int width)

void trace (const unsigned int &object, const std::string &name, int width)

void trace (const unsigned long &object, const std::string &name, int width)

void trace (const char &object, const std::string &name, int width)

void trace (const short &object, const std::string &name, int width)

void trace (const int &object, const std::string &name, int width)

void trace (const long &object, const std::string &name, int width)

void trace (const sc_dt::int64 &object, const std::string &name, int width)

void trace (const sc_dt::uint64 &object, const std::string &name, int width)

void trace (const float &object, const std::string &name)

void trace (const double &object, const std::string &name)

void trace (const sc_dt::sc_unsigned &object, const std::string &name)

void trace (const sc_dt::sc_signed &object, const std::string &name)

void trace (const sc_dt::sc_uint_base &object, const std::string &name)

void trace (const sc_dt::sc_int_base &object, const std::string &name)

void trace (const sc_dt::sc_fxval &object, const std::string &name)

void trace (const sc_dt::sc_fxval_fast &object, const std::string &name)

void trace (const sc_dt::sc_fxnum &object, const std::string &name)

void trace (const sc_dt::sc_fxnum_fast &object, const std::string &name)

template<class T >
void traceT (const T &object, const std::string &name, wif_enum type)

virtual void trace (const sc_dt::sc_bv_base &object, const std::string &name)

virtual void trace (const sc_dt::sc_lv_base &object, const std::string &name)

void trace (const unsigned &object, const std::string &name, const char **enum_literals)

void write_comment (const std::string &comment)

void cycle (bool delta_cycle)

- Protected Member Functions inherited from sc_core::sc_trace_file_base
 sc_trace_file_base (const char *name, const char *extension)

bool initialize ()

void open_fp ()

bool add_trace_check (const std::string &name) const

virtual ~sc_trace_file_base ()

- Protected Member Functions inherited from sc_core::sc_trace_file
virtual ~sc_trace_file ()


Additional Inherited Members

- Protected Attributes inherited from sc_core::sc_trace_file_base
FILE * fp

double timescale_unit

bool timescale_set_by_user


Detailed Description

Definition at line 69 of file sc_wif_trace.h.

Member Enumeration Documentation

enum sc_core::wif_trace_file::wif_enum
Enumerator
WIF_BIT
WIF_MVL
WIF_REAL
WIF_LAST

Definition at line 73 of file sc_wif_trace.h.

Constructor & Destructor Documentation

sc_core::wif_trace_file::wif_trace_file ( const char *  name)
explicit
sc_core::wif_trace_file::~wif_trace_file ( )

Member Function Documentation

void sc_core::wif_trace_file::cycle ( bool  delta_cycle)
protectedvirtual

Implements sc_core::sc_trace_file.

std::string sc_core::wif_trace_file::obtain_name ( )
void sc_core::wif_trace_file::trace ( const bool &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_bit &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_logic &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const unsigned char &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const unsigned short &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const unsigned int &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const unsigned long &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const char &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const short &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const int &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const long &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::int64 &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::uint64 &  object,
const std::string &  name,
int  width
)
protected
void sc_core::wif_trace_file::trace ( const float &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const double &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_unsigned &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_signed &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_uint_base &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_int_base &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_fxval &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_fxval_fast &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_fxnum &  object,
const std::string &  name
)
protected
void sc_core::wif_trace_file::trace ( const sc_dt::sc_fxnum_fast &  object,
const std::string &  name
)
protected
virtual void sc_core::wif_trace_file::trace ( const sc_dt::sc_bv_base &  object,
const std::string &  name
)
protectedvirtual
virtual void sc_core::wif_trace_file::trace ( const sc_dt::sc_lv_base &  object,
const std::string &  name
)
protectedvirtual
void sc_core::wif_trace_file::trace ( const unsigned &  object,
const std::string &  name,
const char **  enum_literals
)
protected
template<class T >
void sc_core::wif_trace_file::traceT ( const T &  object,
const std::string &  name,
wif_enum  type
)
inlineprotected

Definition at line 166 of file sc_wif_trace.h.

void sc_core::wif_trace_file::write_comment ( const std::string &  comment)
protectedvirtual

Implements sc_core::sc_trace_file.

Member Data Documentation

std::vector<wif_trace*> sc_core::wif_trace_file::traces

Definition at line 214 of file sc_wif_trace.h.

The documentation for this class was generated from the following file:
