#include <sysc/communication/sc_signal.h>

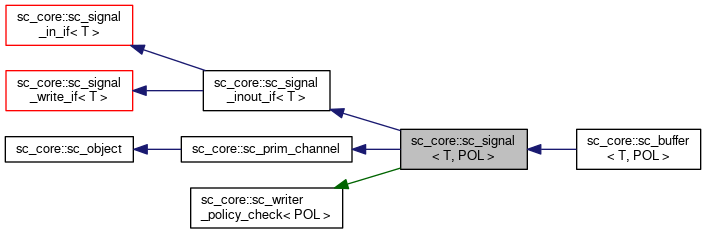

Inheritance diagram for sc_core::sc_signal< T, POL >:

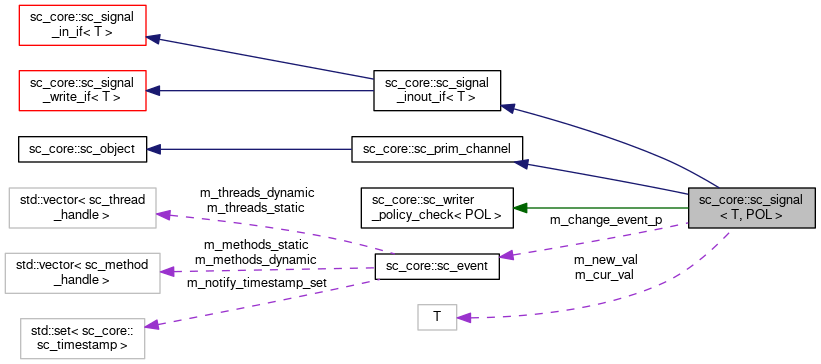

Collaboration diagram for sc_core::sc_signal< T, POL >:

Public Member Functions
	sc_signal ()

	sc_signal (const char *name_)

	sc_signal (const char *name_, const T &initial_value_)

virtual	~sc_signal ()

virtual void	register_port (sc_port_base &, const char *)

virtual sc_writer_policy	get_writer_policy () const

virtual const sc_event &	default_event () const

virtual const sc_event &	value_changed_event () const

virtual const T &	read () const

virtual const T &	get_data_ref () const

virtual bool	event () const

virtual void	write (const T &)

	operator const T & () const

this_type &	operator= (const T &a)

this_type &	operator= (const sc_signal_in_if< T > &a)

this_type &	operator= (const this_type &a)

const T &	get_new_value () const

void	trace (sc_trace_file *tf) const

virtual void	print (::std::ostream &=::std::cout) const

virtual void	dump (::std::ostream &=::std::cout) const

virtual const char *	kind () const

Public Member Functions inherited from sc_core::sc_interface
virtual	~sc_interface ()

Public Member Functions inherited from sc_core::sc_signal_write_if< T >
	sc_signal_write_if ()

Public Member Functions inherited from sc_core::sc_prim_channel
bool	update_requested ()

void	request_update ()

void	async_request_update ()

Public Member Functions inherited from sc_core::sc_object
const char *	name () const

const char *	basename () const

sc_simcontext *	simcontext () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &name_)

const sc_attr_base *	get_attribute (const std::string &name_) const

sc_attr_base *	remove_attribute (const std::string &name_)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

virtual const std::vector < sc_event * > &	get_child_events () const

virtual const std::vector < sc_object * > &	get_child_objects () const

sc_object *	get_parent () const

sc_object *	get_parent_object () const

Protected Types
typedef sc_signal_inout_if< T >	if_type

typedef sc_signal< T, POL >	this_type

typedef sc_writer_policy_check < POL >	policy_type

Protected Member Functions
virtual void	update ()
	The update method (does nothing by default). More...

void	do_update ()

Protected Member Functions inherited from sc_core::sc_signal_inout_if< T >
	sc_signal_inout_if ()

Protected Member Functions inherited from sc_core::sc_signal_in_if< T >
	sc_signal_in_if ()

Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()

Protected Member Functions inherited from sc_core::sc_prim_channel
	sc_prim_channel ()

	sc_prim_channel (const char *)

virtual	~sc_prim_channel ()

virtual void	before_end_of_elaboration ()

virtual void	end_of_elaboration ()

virtual void	start_of_simulation ()

virtual void	end_of_simulation ()

void	wait (int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event &e, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event_or_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event_and_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &t, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (double v, sc_time_unit tu, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &t, const sc_event &e, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (double v, sc_time_unit tu, const sc_event &e, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &t, const sc_event_or_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (double v, sc_time_unit tu, const sc_event_or_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &t, const sc_event_and_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (double v, sc_time_unit tu, const sc_event_and_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (int n, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger ()
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_event &e)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_event_or_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_event_and_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_time &t)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (double v, sc_time_unit tu)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_time &t, const sc_event &e)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (double v, sc_time_unit tu, const sc_event &e)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_time &t, const sc_event_or_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (double v, sc_time_unit tu, const sc_event_or_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_time &t, const sc_event_and_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (double v, sc_time_unit tu, const sc_event_and_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

bool	timed_out ()

Protected Member Functions inherited from sc_core::sc_object
	sc_object ()

	sc_object (const char *nm)

	sc_object (const sc_object &)

sc_object &	operator= (const sc_object &)

virtual	~sc_object ()

virtual void	add_child_event (sc_event *event_p)

virtual void	add_child_object (sc_object *object_p)

virtual bool	remove_child_event (sc_event *event_p)

virtual bool	remove_child_object (sc_object *object_p)

phase_cb_mask	register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask	unregister_simulation_phase_callback (phase_cb_mask)

Protected Attributes
sc_event *	m_change_event_p

T	m_cur_val

sc_dt::uint64	m_change_stamp

T	m_new_val

Protected Attributes inherited from sc_core::sc_prim_channel
CHNL_MTX_TYPE_	m_mutex
	A mutex to protect concurrent communication. More...

Additional Inherited Members
Public Types inherited from sc_core::sc_prim_channel
enum	{ list_end = 0xdb }

Public Types inherited from sc_core::sc_object
typedef unsigned	phase_cb_mask

Detailed Description

template<class T, sc_writer_policy POL>
class sc_core::sc_signal< T, POL >

Definition at line 72 of file sc_signal.h.

Member Typedef Documentation

template<class T, sc_writer_policy POL>

typedef sc_signal_inout_if<T> sc_core::sc_signal< T, POL >::if_type

protected

Definition at line 78 of file sc_signal.h.

template<class T, sc_writer_policy POL>

typedef sc_writer_policy_check<POL> sc_core::sc_signal< T, POL >::policy_type

protected

Definition at line 80 of file sc_signal.h.

template<class T, sc_writer_policy POL>

typedef sc_signal<T,POL> sc_core::sc_signal< T, POL >::this_type

protected

Definition at line 79 of file sc_signal.h.

Constructor & Destructor Documentation

template<class T, sc_writer_policy POL>

sc_core::sc_signal< T, POL >::sc_signal ( )

inline

Definition at line 84 of file sc_signal.h.

template<class T, sc_writer_policy POL>

sc_core::sc_signal< T, POL >::sc_signal ( const char * name_ )

inlineexplicit

Definition at line 90 of file sc_signal.h.

template<class T, sc_writer_policy POL>

sc_core::sc_signal< T, POL >::sc_signal	(	const char *	name_,
		const T &	initial_value_
	)

inline

Definition at line 96 of file sc_signal.h.

template<class T, sc_writer_policy POL>

virtual sc_core::sc_signal< T, POL >::~sc_signal ( )

inlinevirtual

Definition at line 104 of file sc_signal.h.

Member Function Documentation

template<class T, sc_writer_policy POL>

virtual const sc_event& sc_core::sc_signal< T, POL >::default_event ( ) const

inlinevirtual

Reimplemented from sc_core::sc_interface.

Definition at line 118 of file sc_signal.h.

template<class T , sc_writer_policy POL>

void sc_core::sc_signal< T, POL >::do_update ( )

protected

Definition at line 294 of file sc_signal.h.

template<class T , sc_writer_policy POL>

void sc_core::sc_signal< T, POL >::dump ( ::std::ostream & os = ::std::cout ) const

virtual

Reimplemented from sc_core::sc_object.

Definition at line 269 of file sc_signal.h.

template<class T, sc_writer_policy POL>

virtual bool sc_core::sc_signal< T, POL >::event ( ) const

inlinevirtual

Implements sc_core::sc_signal_in_if< T >.

Definition at line 150 of file sc_signal.h.

template<class T, sc_writer_policy POL>

virtual const T& sc_core::sc_signal< T, POL >::get_data_ref ( ) const

inlinevirtual

Implements sc_core::sc_signal_in_if< T >.

Definition at line 138 of file sc_signal.h.

template<class T, sc_writer_policy POL>

const T& sc_core::sc_signal< T, POL >::get_new_value ( ) const

inline

Definition at line 173 of file sc_signal.h.

template<class T, sc_writer_policy POL>

virtual sc_writer_policy sc_core::sc_signal< T, POL >::get_writer_policy ( ) const

inlinevirtual

Reimplemented from sc_core::sc_signal_write_if< T >.

Definition at line 114 of file sc_signal.h.

template<class T, sc_writer_policy POL>

virtual const char* sc_core::sc_signal< T, POL >::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_prim_channel.

Reimplemented in sc_core::sc_signal_rv< W >, sc_core::sc_clock, sc_core::sc_signal_resolved, and sc_core::sc_buffer< T, POL >.

Definition at line 199 of file sc_signal.h.

template<class T, sc_writer_policy POL>

sc_core::sc_signal< T, POL >::operator const T & ( ) const

inline

Definition at line 159 of file sc_signal.h.

template<class T, sc_writer_policy POL>

this_type& sc_core::sc_signal< T, POL >::operator= ( const T & a )

inline

Definition at line 163 of file sc_signal.h.

template<class T, sc_writer_policy POL>

this_type& sc_core::sc_signal< T, POL >::operator= ( const sc_signal_in_if< T > & a )

inline

Definition at line 166 of file sc_signal.h.

template<class T, sc_writer_policy POL>

this_type& sc_core::sc_signal< T, POL >::operator= ( const this_type & a )

inline

Definition at line 169 of file sc_signal.h.

template<class T , sc_writer_policy POL>

void sc_core::sc_signal< T, POL >::print ( ::std::ostream & os = ::std::cout ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 262 of file sc_signal.h.

template<class T, sc_writer_policy POL>

virtual const T& sc_core::sc_signal< T, POL >::read ( ) const

inlinevirtual

Implements sc_core::sc_signal_in_if< T >.

Definition at line 134 of file sc_signal.h.

template<class T , sc_writer_policy POL>

void sc_core::sc_signal< T, POL >::register_port	(	sc_port_base &	port_,
		const char *	if_typename_
	)

inlinevirtual

Reimplemented from sc_core::sc_interface.

Reimplemented in sc_core::sc_signal_rv< W >, sc_core::sc_clock, and sc_core::sc_signal_resolved.

Definition at line 227 of file sc_signal.h.

template<class T, sc_writer_policy POL>

void sc_core::sc_signal< T, POL >::trace ( sc_trace_file * tf ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 185 of file sc_signal.h.

template<class T , sc_writer_policy POL>

void sc_core::sc_signal< T, POL >::update ( )

protectedvirtual

The update method (does nothing by default).

This function is not supported by the out-of-order simulation in the current release.

Reimplemented from sc_core::sc_prim_channel.

Reimplemented in sc_core::sc_signal_rv< W >, sc_core::sc_signal_resolved, and sc_core::sc_buffer< T, POL >.

Definition at line 284 of file sc_signal.h.

template<class T, sc_writer_policy POL>

virtual const sc_event& sc_core::sc_signal< T, POL >::value_changed_event ( ) const

inlinevirtual

Implements sc_core::sc_signal_in_if< T >.

Definition at line 122 of file sc_signal.h.

template<class T, sc_writer_policy POL>

void sc_core::sc_signal< T, POL >::write ( const T & value_ )

inlinevirtual

Implements sc_core::sc_signal_write_if< T >.

Reimplemented in sc_core::sc_signal_rv< W >, sc_core::sc_clock, sc_core::sc_signal_resolved, and sc_core::sc_buffer< T, POL >.

Definition at line 241 of file sc_signal.h.

Member Data Documentation

template<class T, sc_writer_policy POL>

sc_event* sc_core::sc_signal< T, POL >::m_change_event_p

mutableprotected

Definition at line 209 of file sc_signal.h.

template<class T, sc_writer_policy POL>

sc_dt::uint64 sc_core::sc_signal< T, POL >::m_change_stamp

protected

Definition at line 211 of file sc_signal.h.

template<class T, sc_writer_policy POL>

T sc_core::sc_signal< T, POL >::m_cur_val

protected

Definition at line 210 of file sc_signal.h.

template<class T, sc_writer_policy POL>

T sc_core::sc_signal< T, POL >::m_new_val

protected

Definition at line 212 of file sc_signal.h.

The documentation for this class was generated from the following file:

sysc/communication/sc_signal.h

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

template<class T, sc_writer_policy POL> class sc_core::sc_signal< T, POL >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class T, sc_writer_policy POL>
class sc_core::sc_signal< T, POL >
