#include <sysc/communication/sc_clock_ports.h>
Inheritance diagram for sc_core::sc_in_clk:

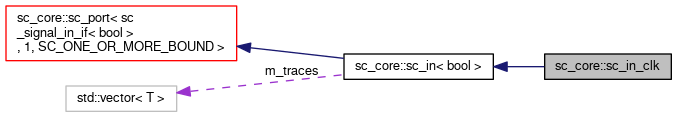

Collaboration diagram for sc_core::sc_in_clk:
Additional Inherited Members | |
 Public Types inherited from sc_core::sc_in< bool > | |
| typedef bool | data_type |
| typedef sc_signal_in_if < data_type > | if_type |
| typedef sc_port< if_type, 1, SC_ONE_OR_MORE_BOUND > | base_type |
| typedef sc_in< data_type > | this_type |
| typedef base_type::port_type | base_port_type |
| typedef if_type | in_if_type |
| typedef base_type | in_port_type |
| typedef sc_signal_inout_if < data_type > | inout_if_type |
| typedef sc_port< inout_if_type, 1, SC_ONE_OR_MORE_BOUND > | inout_port_type |
| Public Types inherited from sc_core::sc_port_b< sc_signal_in_if< bool > > | |
| typedef sc_port_base | base_type |
| typedef sc_port_b < sc_signal_in_if< bool > > | this_type |
| typedef this_type | port_type |
| Public Types inherited from sc_core::sc_port_base | |
| typedef sc_port_base | this_type |
| Public Types inherited from sc_core::sc_object | |
| typedef unsigned | phase_cb_mask |
| Public Member Functions inherited from sc_core::sc_in< bool > | |
| sc_in () | |
| sc_in (const char *name_) | |
| sc_in (const in_if_type &interface_) | |
| sc_in (const char *name_, const in_if_type &interface_) | |
| sc_in (in_port_type &parent_) | |
| sc_in (const char *name_, in_port_type &parent_) | |
| sc_in (inout_port_type &parent_) | |
| sc_in (const char *name_, inout_port_type &parent_) | |
| sc_in (this_type &parent_) | |
| sc_in (const char *name_, this_type &parent_) | |
| virtual | ~sc_in () |
| SC_VIRTUAL_ void | bind (const in_if_type &interface_) |
| SC_VIRTUAL_ void | bind (in_if_type &interface_) |
| void | operator() (const in_if_type &interface_) |
| SC_VIRTUAL_ void | bind (in_port_type &parent_) |
| void | operator() (in_port_type &parent_) |
| SC_VIRTUAL_ void | bind (inout_port_type &parent_) |
| void | operator() (inout_port_type &parent_) |
| const sc_event & | default_event () const |
| const sc_event & | value_changed_event () const |
| const sc_event & | posedge_event () const |
| const sc_event & | negedge_event () const |
| const data_type & | read () const |
| operator const data_type & () const | |
| sc_event_finder & | pos () const |
| sc_event_finder & | neg () const |
| bool | event () const |
| bool | posedge () const |
| bool | negedge () const |
| sc_event_finder & | value_changed () const |
| virtual void | end_of_elaboration () |
| virtual const char * | kind () const |
| void | add_trace (sc_trace_file *, const std::string &) const |
| void | add_trace_internal (sc_trace_file *, const std::string &) const |
| Public Member Functions inherited from sc_core::sc_port< sc_signal_in_if< bool >, 1, SC_ONE_OR_MORE_BOUND > | |
| sc_port () | |
| sc_port (const char *name_) | |
| sc_port (sc_signal_in_if< bool > &interface_) | |
| sc_port (const char *name_, sc_signal_in_if< bool > &interface_) | |
| sc_port (base_type &parent_) | |
| sc_port (const char *name_, base_type &parent_) | |
| sc_port (this_type &parent_) | |
| sc_port (const char *name_, this_type &parent_) | |
| virtual | ~sc_port () |
| Public Member Functions inherited from sc_core::sc_port_b< sc_signal_in_if< bool > > | |
| SC_VIRTUAL_ void | bind (sc_signal_in_if< bool > &interface_) |
| SC_VIRTUAL_ void | bind (port_type &parent_) |
| void | operator() (sc_signal_in_if< bool > &interface_) |
| void | operator() (port_type &parent_) |
| int | size () const |
| sc_signal_in_if< bool > * | operator-> () |
| const sc_signal_in_if< bool > * | operator-> () const |
| const sc_signal_in_if< bool > * | get_interface (int iface_i) const |
| sc_signal_in_if< bool > * | get_interface (int iface_i) |
| virtual sc_interface * | get_interface () |
| virtual const sc_interface * | get_interface () const |
| sc_signal_in_if< bool > * | operator[] (int index_) |
| const sc_signal_in_if< bool > * | operator[] (int index_) const |
| Public Member Functions inherited from sc_core::sc_port_base | |
| int | bind_count () |
| Public Member Functions inherited from sc_core::sc_object | |
| const char * | name () const |
| const char * | basename () const |
| virtual void | print (::std::ostream &os=::std::cout) const |
| virtual void | dump (::std::ostream &os=::std::cout) const |
| virtual void | trace (sc_trace_file *tf) const |
| sc_simcontext * | simcontext () const |
| bool | add_attribute (sc_attr_base &) |
| sc_attr_base * | get_attribute (const std::string &name_) |
| const sc_attr_base * | get_attribute (const std::string &name_) const |
| sc_attr_base * | remove_attribute (const std::string &name_) |
| void | remove_all_attributes () |
| int | num_attributes () const |
| sc_attr_cltn & | attr_cltn () |
| const sc_attr_cltn & | attr_cltn () const |
| virtual const std::vector < sc_event * > & | get_child_events () const |
| virtual const std::vector < sc_object * > & | get_child_objects () const |
| sc_object * | get_parent () const |
| sc_object * | get_parent_object () const |
| Protected Member Functions inherited from sc_core::sc_in< bool > | |
| void | remove_traces () const |
| virtual int | vbind (sc_interface &) |
| virtual int | vbind (sc_port_base &) |
| SC_VIRTUAL_ void | bind (base_port_type &parent_) |
| Protected Member Functions inherited from sc_core::sc_port_b< sc_signal_in_if< bool > > | |
| sc_port_b (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND) | |
| sc_port_b (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND) | |
| virtual | ~sc_port_b () |
| virtual void | make_sensitive (sc_thread_handle, sc_event_finder *=0) const |
| virtual void | make_sensitive (sc_method_handle, sc_event_finder *=0) const |
| Protected Member Functions inherited from sc_core::sc_port_base | |
| sc_port_base (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND) | |
| sc_port_base (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND) | |
| virtual | ~sc_port_base () |
| void | bind (sc_interface &interface_) |
| void | bind (this_type &parent_) |
| virtual void | before_end_of_elaboration () |
| virtual void | start_of_simulation () |
| virtual void | end_of_simulation () |
| void | report_error (const char *id, const char *add_msg=0) const |
| void | add_static_event (sc_method_handle process_p, const sc_event &event) const |
| void | add_static_event (sc_thread_handle process_p, const sc_event &event) const |
| Protected Member Functions inherited from sc_core::sc_object | |
| sc_object () | |
| sc_object (const char *nm) | |
| sc_object (const sc_object &) | |
| sc_object & | operator= (const sc_object &) |
| virtual | ~sc_object () |
| virtual void | add_child_event (sc_event *event_p) |
| virtual void | add_child_object (sc_object *object_p) |
| virtual bool | remove_child_event (sc_event *event_p) |
| virtual bool | remove_child_object (sc_object *object_p) |
| phase_cb_mask | register_simulation_phase_callback (phase_cb_mask) |
| phase_cb_mask | unregister_simulation_phase_callback (phase_cb_mask) |
| Protected Attributes inherited from sc_core::sc_in< bool > | |
| sc_trace_params_vec * | m_traces |
| Protected Attributes inherited from sc_core::sc_port_base | |
| sc_bind_info * | m_bind_info |
Detailed Description
Definition at line 45 of file sc_clock_ports.h.
The documentation for this class was generated from the following file:
- sysc/communication/sc_clock_ports.h
