#include <sysc/datatypes/misc/sc_concatref.h>

Inheritance diagram for sc_dt::sc_concatref:

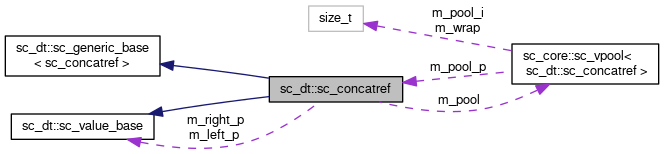

Collaboration diagram for sc_dt::sc_concatref:

Public Types
enum	concat_flags { cf_none = 0, cf_xz_present = 1 }

Public Member Functions
void	initialize (sc_value_base &left, sc_value_base &right)

void	initialize (const sc_value_base &left, const sc_value_base &right)

virtual	~sc_concatref ()

unsigned int	length () const

virtual int	concat_length (bool *xz_present_p) const

virtual void	concat_clear_data (bool to_ones)

virtual bool	concat_get_ctrl (sc_digit *dst_p, int low_i) const

virtual bool	concat_get_data (sc_digit *dst_p, int low_i) const

virtual uint64	concat_get_uint64 () const

virtual void	concat_set (int64 src, int low_i)

virtual void	concat_set (const sc_signed &src, int low_i)

virtual void	concat_set (const sc_unsigned &src, int low_i)

virtual void	concat_set (uint64 src, int low_i)

uint64	to_uint64 () const

const sc_unsigned &	value () const

int64	to_int64 () const

int	to_int () const

unsigned int	to_uint () const

long	to_long () const

unsigned long	to_ulong () const

double	to_double () const

void	to_sc_signed (sc_signed &target) const

void	to_sc_unsigned (sc_unsigned &target) const

	operator uint64 () const

	operator const sc_unsigned & () const

sc_unsigned	operator+ () const

sc_signed	operator- () const

sc_unsigned	operator~ () const

const std::string	to_string (sc_numrep numrep=SC_DEC) const

const std::string	to_string (sc_numrep numrep, bool w_prefix) const

const sc_concatref &	operator= (int v)

const sc_concatref &	operator= (long v)

const sc_concatref &	operator= (int64 v)

const sc_concatref &	operator= (unsigned int v)

const sc_concatref &	operator= (unsigned long v)

const sc_concatref &	operator= (uint64 v)

const sc_concatref &	operator= (const sc_concatref &v)

const sc_concatref &	operator= (const sc_signed &v)

const sc_concatref &	operator= (const sc_unsigned &v)

const sc_concatref &	operator= (const char *v_p)

const sc_concatref &	operator= (const sc_bv_base &v)

const sc_concatref &	operator= (const sc_lv_base &v)

bool	and_reduce () const

bool	nand_reduce () const

bool	or_reduce () const

bool	nor_reduce () const

bool	xor_reduce () const

bool	xnor_reduce () const

void	print (::std::ostream &os=::std::cout) const

void	scan (::std::istream &is)

Public Member Functions inherited from sc_dt::sc_generic_base< sc_concatref >
const sc_concatref *	operator-> () const

sc_concatref *	operator-> ()

Public Member Functions inherited from sc_dt::sc_value_base
virtual	~sc_value_base ()

Static Public Attributes
static sc_core::sc_vpool < sc_concatref >	m_pool

Protected Attributes
sc_value_base *	m_left_p

sc_value_base *	m_right_p

int	m_len

int	m_len_r

concat_flags	m_flags

Friends
class	sc_core::sc_vpool< sc_concatref >

Detailed Description

Definition at line 101 of file sc_concatref.h.

Member Enumeration Documentation

enum sc_dt::sc_concatref::concat_flags

Enumerator
cf_none
cf_xz_present

Definition at line 442 of file sc_concatref.h.

Constructor & Destructor Documentation

virtual sc_dt::sc_concatref::~sc_concatref ( )

inlinevirtual

Definition at line 135 of file sc_concatref.h.

Member Function Documentation

bool sc_dt::sc_concatref::and_reduce ( ) const

inline

Definition at line 408 of file sc_concatref.h.

virtual void sc_dt::sc_concatref::concat_clear_data ( bool to_ones )

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 158 of file sc_concatref.h.

virtual bool sc_dt::sc_concatref::concat_get_ctrl	(	sc_digit *	dst_p,
		int	low_i
	)		const

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 164 of file sc_concatref.h.

virtual bool sc_dt::sc_concatref::concat_get_data	(	sc_digit *	dst_p,
		int	low_i
	)		const

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 171 of file sc_concatref.h.

virtual uint64 sc_dt::sc_concatref::concat_get_uint64 ( ) const

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 178 of file sc_concatref.h.

virtual int sc_dt::sc_concatref::concat_length ( bool * xz_present_p ) const

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 151 of file sc_concatref.h.

virtual void sc_dt::sc_concatref::concat_set	(	int64	src,
		int	low_i
	)

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 189 of file sc_concatref.h.

virtual void sc_dt::sc_concatref::concat_set	(	const sc_signed &	src,
		int	low_i
	)

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 195 of file sc_concatref.h.

virtual void sc_dt::sc_concatref::concat_set	(	const sc_unsigned &	src,
		int	low_i
	)

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 201 of file sc_concatref.h.

virtual void sc_dt::sc_concatref::concat_set	(	uint64	src,
		int	low_i
	)

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 207 of file sc_concatref.h.

void sc_dt::sc_concatref::initialize	(	sc_value_base &	left,
		sc_value_base &	right
	)

inline

Definition at line 106 of file sc_concatref.h.

void sc_dt::sc_concatref::initialize	(	const sc_value_base &	left,
		const sc_value_base &	right
	)

inline

Definition at line 120 of file sc_concatref.h.

unsigned int sc_dt::sc_concatref::length ( ) const

inline

Definition at line 141 of file sc_concatref.h.

bool sc_dt::sc_concatref::nand_reduce ( ) const

inline

Definition at line 411 of file sc_concatref.h.

bool sc_dt::sc_concatref::nor_reduce ( ) const

inline

Definition at line 417 of file sc_concatref.h.

sc_dt::sc_concatref::operator const sc_unsigned & ( ) const

inline

Definition at line 287 of file sc_concatref.h.

sc_dt::sc_concatref::operator uint64 ( ) const

inline

Definition at line 284 of file sc_concatref.h.

sc_unsigned sc_dt::sc_concatref::operator+ ( ) const

inline

Definition at line 292 of file sc_concatref.h.

sc_signed sc_dt::sc_concatref::operator- ( ) const

inline

Definition at line 295 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( int v )

inline

Definition at line 313 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( long v )

inline

Definition at line 320 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( int64 v )

inline

Definition at line 327 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( unsigned int v )

inline

Definition at line 334 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( unsigned long v )

inline

Definition at line 341 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( uint64 v )

inline

Definition at line 348 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( const sc_concatref & v )

inline

Definition at line 355 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( const sc_signed & v )

inline

Definition at line 364 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( const sc_unsigned & v )

inline

Definition at line 371 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( const char * v_p )

inline

Definition at line 378 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( const sc_bv_base & v )

inline

Definition at line 387 of file sc_concatref.h.

const sc_concatref& sc_dt::sc_concatref::operator= ( const sc_lv_base & v )

inline

Definition at line 396 of file sc_concatref.h.

sc_unsigned sc_dt::sc_concatref::operator~ ( ) const

inline

Definition at line 298 of file sc_concatref.h.

bool sc_dt::sc_concatref::or_reduce ( ) const

inline

Definition at line 414 of file sc_concatref.h.

void sc_dt::sc_concatref::print ( ::std::ostream & os = ::std::cout ) const

inline

Definition at line 428 of file sc_concatref.h.

void sc_dt::sc_concatref::scan ( ::std::istream & is )

inline

Definition at line 431 of file sc_concatref.h.

double sc_dt::sc_concatref::to_double ( ) const

inline

Definition at line 273 of file sc_concatref.h.

int sc_dt::sc_concatref::to_int ( ) const

inline

Definition at line 265 of file sc_concatref.h.

int64 sc_dt::sc_concatref::to_int64 ( ) const

inline

Definition at line 261 of file sc_concatref.h.

long sc_dt::sc_concatref::to_long ( ) const

inline

Definition at line 269 of file sc_concatref.h.

void sc_dt::sc_concatref::to_sc_signed ( sc_signed & target ) const

inline

Definition at line 276 of file sc_concatref.h.

void sc_dt::sc_concatref::to_sc_unsigned ( sc_unsigned & target ) const

inline

Definition at line 279 of file sc_concatref.h.

const std::string sc_dt::sc_concatref::to_string ( sc_numrep numrep = SC_DEC ) const

inline

Definition at line 303 of file sc_concatref.h.

const std::string sc_dt::sc_concatref::to_string	(	sc_numrep	numrep,
		bool	w_prefix
	)		const

inline

Definition at line 306 of file sc_concatref.h.

unsigned int sc_dt::sc_concatref::to_uint ( ) const

inline

Definition at line 267 of file sc_concatref.h.

uint64 sc_dt::sc_concatref::to_uint64 ( ) const

inline

Definition at line 216 of file sc_concatref.h.

unsigned long sc_dt::sc_concatref::to_ulong ( ) const

inline

Definition at line 271 of file sc_concatref.h.

const sc_unsigned& sc_dt::sc_concatref::value ( ) const

inline

Definition at line 236 of file sc_concatref.h.

bool sc_dt::sc_concatref::xnor_reduce ( ) const

inline

Definition at line 423 of file sc_concatref.h.

bool sc_dt::sc_concatref::xor_reduce ( ) const

inline

Definition at line 420 of file sc_concatref.h.

Friends And Related Function Documentation

friend class sc_core::sc_vpool< sc_concatref >

friend

Definition at line 104 of file sc_concatref.h.

Member Data Documentation

concat_flags sc_dt::sc_concatref::m_flags

protected

Definition at line 452 of file sc_concatref.h.

sc_value_base* sc_dt::sc_concatref::m_left_p

protected

Definition at line 448 of file sc_concatref.h.

int sc_dt::sc_concatref::m_len

protected

Definition at line 450 of file sc_concatref.h.

int sc_dt::sc_concatref::m_len_r

protected

Definition at line 451 of file sc_concatref.h.

sc_core::sc_vpool<sc_concatref> sc_dt::sc_concatref::m_pool

static

Definition at line 439 of file sc_concatref.h.

sc_value_base* sc_dt::sc_concatref::m_right_p

protected

Definition at line 449 of file sc_concatref.h.

The documentation for this class was generated from the following file:

sysc/datatypes/misc/sc_concatref.h
