risc::sg::ConflictTable Class Reference

#include <conflict_table.h>

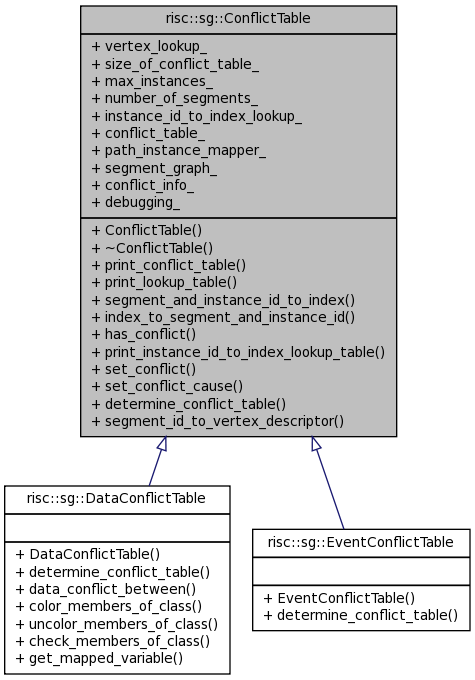

Inheritance diagram for risc::sg::ConflictTable:

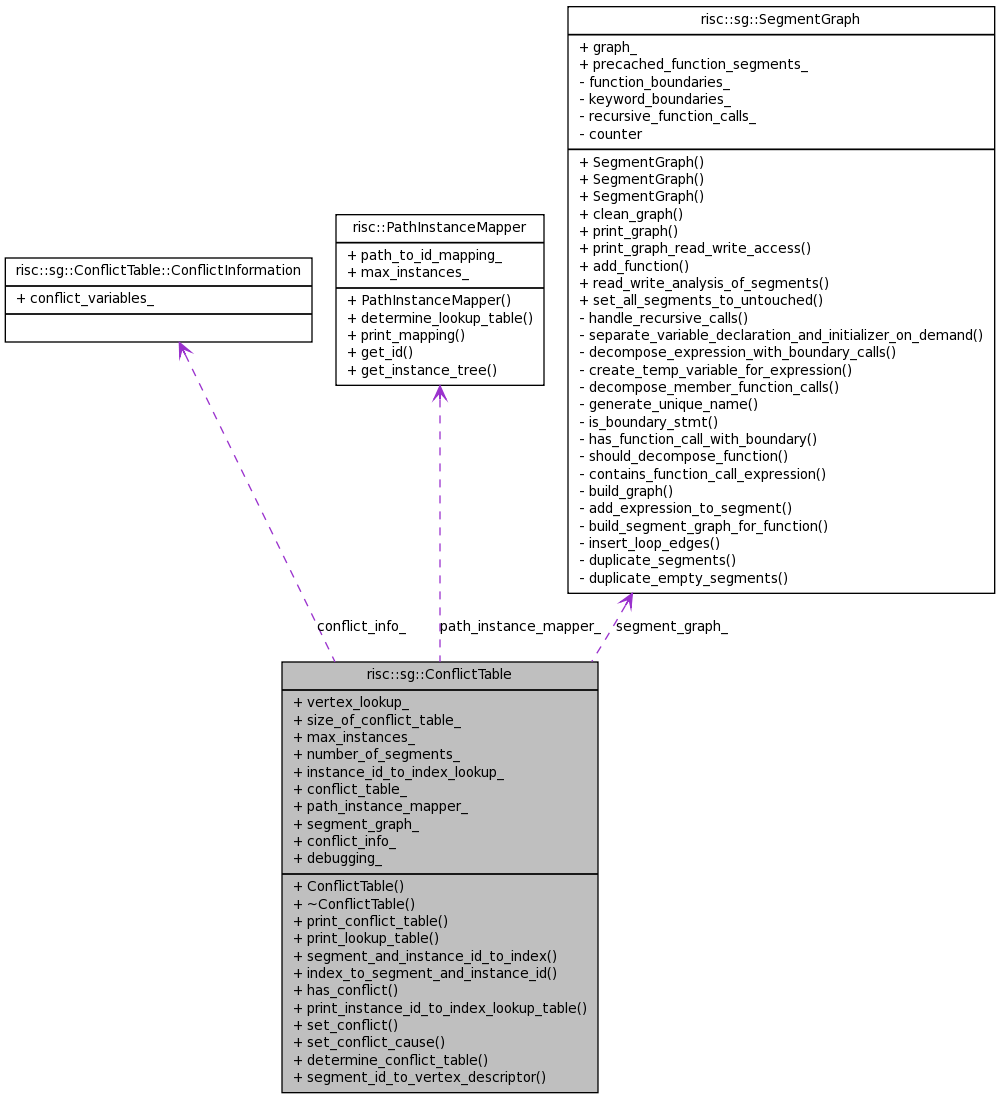

Collaboration diagram for risc::sg::ConflictTable:

Classes
struct	ConflictInformation
Public Member Functions
	ConflictTable (SegmentGraph &segment_graph, PathInstanceMapper &path_instance_mapper, bool debugging=false)
	Default constructor.
	~ConflictTable ()
	Default constructor.
void	print_conflict_table (std::string filename)
	Generates a html file of the conflict table.
void	print_lookup_table (std::string filename)
	Generates a html file of the lookup table.
int	segment_and_instance_id_to_index (int segment_id, int instance_id)
	This function translates a given segment id and instance id to a index of the conflict table.
std::pair< int, int >	index_to_segment_and_instance_id (int index)
	This function translates a given index from the conflict table into the corresponding segment id and instance id. The first value is the segment id and the second value is the instance id.
bool	has_conflict (int segment_id_1, int instance_id_1, int segment_id_2, int instance_id_2)
	This function looks up if there is a conflict between segment 1 with instance id 1 and segment 2 with instance id 2.
void	print_instance_id_to_index_lookup_table ()
	This function prints the table instance_id_to_index_lookup_table in the terminal.
void	set_conflict (int segment_id_1, int instance_id_1, int segment_id_2, int instance_id_2)
	This function sets a conflict in the conflict table.
void	set_conflict_cause (int segment_id_1, int instance_id_1, int segment_id_2, int instance_id_2, SgNode *cause=NULL)
	This function sets a conflict in the conflict table.
virtual void	determine_conflict_table ()
	This function determines the conflict table. The function is overloaded for the data and event conflict table.
VertexDescriptor	segment_id_to_vertex_descriptor (int id)
	This function translates the given segment id to the corresponding vertex descriptor.
Public Attributes
VertexDescriptor *	vertex_lookup_
	This lookup table translates segment ids into vertex descriptors. At position i is the segment with the id of instance_id_to_index_lookup_[0][i].
int	size_of_conflict_table_
	This variable defines the size of the conflict table. The size is quadratic.
int	max_instances_
	This variable represents the max number of module instances in the design. Also, this is the number of rows in the instance_id_to_index_lookup_ table.
int	number_of_segments_
	This variable defines how many segments exist in the segment graph. Also, this is the number of columns in the instance_id_to_index_lookup_ table.
int **	instance_id_to_index_lookup_
	This table should be used a lookup table: (segment id, instance id) -> index of conflict table.
bool **	conflict_table_
	The conflict table.
PathInstanceMapper &	path_instance_mapper_
SegmentGraph &	segment_graph_
ConflictInformation **	conflict_info_
bool	debugging_

Constructor & Destructor Documentation

risc::sg::ConflictTable::ConflictTable	(	SegmentGraph &	segment_graph,
		PathInstanceMapper &	path_instance_mapper,
		bool	debugging = `false`
	)

Default constructor.

risc::sg::ConflictTable::~ConflictTable ( )

Default constructor.

Member Function Documentation

void risc::sg::ConflictTable::determine_conflict_table ( ) [virtual]

This function determines the conflict table. The function is overloaded for the data and event conflict table.

determine_conflict_table

Reimplemented in risc::sg::DataConflictTable, and risc::sg::EventConflictTable.

bool risc::sg::ConflictTable::has_conflict	(	int	segment_id_1,
		int	instance_id_1,
		int	segment_id_2,
		int	instance_id_2
	)

This function looks up if there is a conflict between segment 1 with instance id 1 and segment 2 with instance id 2.

has_conflict

std::pair< int, int > risc::sg::ConflictTable::index_to_segment_and_instance_id ( int index )

This function translates a given index from the conflict table into the corresponding segment id and instance id. The first value is the segment id and the second value is the instance id.

index_to_segment_and_instance_id

void risc::sg::ConflictTable::print_conflict_table ( std::string filename )

Generates a html file of the conflict table.

print_conflict_table

void risc::sg::ConflictTable::print_instance_id_to_index_lookup_table ( )

This function prints the table instance_id_to_index_lookup_table in the terminal.

print_instance_id_to_index_lookup_table

void risc::sg::ConflictTable::print_lookup_table ( std::string filename )

Generates a html file of the lookup table.

print_lookup_table

int risc::sg::ConflictTable::segment_and_instance_id_to_index	(	int	segment_id,
		int	instance_id
	)

This function translates a given segment id and instance id to a index of the conflict table.

segment_and_instance_id_to_index

risc::sg::VertexDescriptor risc::sg::ConflictTable::segment_id_to_vertex_descriptor ( int id )

This function translates the given segment id to the corresponding vertex descriptor.

segment_id_to_vertex_descriptor

void risc::sg::ConflictTable::set_conflict	(	int	segment_id_1,
		int	instance_id_1,
		int	segment_id_2,
		int	instance_id_2
	)

This function sets a conflict in the conflict table.

set_conflict

void risc::sg::ConflictTable::set_conflict_cause	(	int	segment_id_1,
		int	instance_id_1,
		int	segment_id_2,
		int	instance_id_2,
		SgNode *	cause = `NULL`
	)

This function sets a conflict in the conflict table.

set_conflict

Member Data Documentation

ConflictInformation** risc::sg::ConflictTable::conflict_info_

bool** risc::sg::ConflictTable::conflict_table_

The conflict table.

bool risc::sg::ConflictTable::debugging_

int** risc::sg::ConflictTable::instance_id_to_index_lookup_

This table should be used a lookup table: (segment id, instance id) -> index of conflict table.

int risc::sg::ConflictTable::max_instances_

This variable represents the max number of module instances in the design. Also, this is the number of rows in the instance_id_to_index_lookup_ table.

int risc::sg::ConflictTable::number_of_segments_

This variable defines how many segments exist in the segment graph. Also, this is the number of columns in the instance_id_to_index_lookup_ table.

PathInstanceMapper& risc::sg::ConflictTable::path_instance_mapper_

SegmentGraph& risc::sg::ConflictTable::segment_graph_

int risc::sg::ConflictTable::size_of_conflict_table_

This variable defines the size of the conflict table. The size is quadratic.

VertexDescriptor* risc::sg::ConflictTable::vertex_lookup_

This lookup table translates segment ids into vertex descriptors. At position i is the segment with the id of instance_id_to_index_lookup_[0][i].

The documentation for this class was generated from the following files:

/local/lecs/lecs/risc_v0.2.1/sources/build/risc_v0.2.1/src/segment_graph/conflict_table.h
/local/lecs/lecs/risc_v0.2.1/sources/build/risc_v0.2.1/src/segment_graph/conflict_table.cpp
