sc_core::sc_inout_rv< W > Class Template Reference

The sc_signal_rv<W> input/output port class. More...

#include <sysc/communication/sc_signal_rv_ports.h>

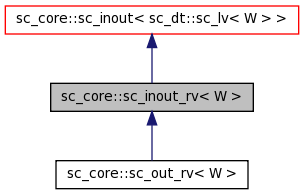

Inheritance diagram for sc_core::sc_inout_rv< W >:

[legend]

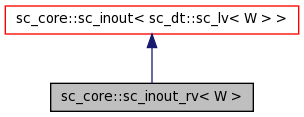

Collaboration diagram for sc_core::sc_inout_rv< W >:

[legend]

List of all members.

Public Types
typedef sc_dt::sc_lv< W >	data_type
typedef sc_inout_rv< W >	this_type
typedef sc_inout< data_type >	base_type
typedef base_type::in_if_type	in_if_type
typedef base_type::in_port_type	in_port_type
typedef base_type::inout_if_type	inout_if_type
typedef base_type::inout_port_type	inout_port_type
Public Member Functions
	sc_inout_rv ()
	sc_inout_rv (const char *name_)
	sc_inout_rv (inout_if_type &interface_)
	sc_inout_rv (const char *name_, inout_if_type &interface_)
	sc_inout_rv (inout_port_type &parent_)
	sc_inout_rv (const char *name_, inout_port_type &parent_)
	sc_inout_rv (this_type &parent_)
	sc_inout_rv (const char *name_, this_type &parent_)
virtual	~sc_inout_rv ()
this_type &	operator= (const data_type &value_)
this_type &	operator= (const in_if_type &interface_)
this_type &	operator= (const in_port_type &port_)
this_type &	operator= (const inout_port_type &port_)
this_type &	operator= (const this_type &port_)
virtual void	end_of_elaboration ()
virtual const char *	kind () const

---

Detailed Description

template<int W>
class sc_core::sc_inout_rv< W >

The sc_signal_rv<W> input/output port class.

Definition at line 157 of file sc_signal_rv_ports.h.

---

Member Typedef Documentation

template<int W>

typedef sc_inout<data_type> sc_core::sc_inout_rv< W >::base_type

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 167 of file sc_signal_rv_ports.h.

template<int W>

typedef sc_dt::sc_lv<W> sc_core::sc_inout_rv< W >::data_type

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 164 of file sc_signal_rv_ports.h.

template<int W>

typedef base_type::in_if_type sc_core::sc_inout_rv< W >::in_if_type

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 169 of file sc_signal_rv_ports.h.

template<int W>

typedef base_type::in_port_type sc_core::sc_inout_rv< W >::in_port_type

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 170 of file sc_signal_rv_ports.h.

template<int W>

typedef base_type::inout_if_type sc_core::sc_inout_rv< W >::inout_if_type

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 171 of file sc_signal_rv_ports.h.

template<int W>

typedef base_type::inout_port_type sc_core::sc_inout_rv< W >::inout_port_type

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 172 of file sc_signal_rv_ports.h.

template<int W>

typedef sc_inout_rv<W> sc_core::sc_inout_rv< W >::this_type

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 166 of file sc_signal_rv_ports.h.

---

Constructor & Destructor Documentation

template<int W>

sc_core::sc_inout_rv< W >::sc_inout_rv

(

)

[inline]

Definition at line 178 of file sc_signal_rv_ports.h.

template<int W>

sc_core::sc_inout_rv< W >::sc_inout_rv

(

const char *

name_

)

[inline, explicit]

Definition at line 182 of file sc_signal_rv_ports.h.

template<int W>

sc_core::sc_inout_rv< W >::sc_inout_rv

(

inout_if_type &

interface_

)

[inline, explicit]

Definition at line 186 of file sc_signal_rv_ports.h.

template<int W>

sc_core::sc_inout_rv< W >::sc_inout_rv	(	const char *	name_,
		inout_if_type &	interface_
	)			[inline]

Definition at line 190 of file sc_signal_rv_ports.h.

template<int W>

sc_core::sc_inout_rv< W >::sc_inout_rv

(

inout_port_type &

parent_

)

[inline, explicit]

Definition at line 194 of file sc_signal_rv_ports.h.

template<int W>

sc_core::sc_inout_rv< W >::sc_inout_rv	(	const char *	name_,
		inout_port_type &	parent_
	)			[inline]

Definition at line 198 of file sc_signal_rv_ports.h.

template<int W>

sc_core::sc_inout_rv< W >::sc_inout_rv

(

this_type &

parent_

)

[inline]

Definition at line 202 of file sc_signal_rv_ports.h.

template<int W>

sc_core::sc_inout_rv< W >::sc_inout_rv	(	const char *	name_,
		this_type &	parent_
	)			[inline]

Definition at line 206 of file sc_signal_rv_ports.h.

template<int W>

virtual sc_core::sc_inout_rv< W >::~sc_inout_rv

(

)

[inline, virtual]

Definition at line 213 of file sc_signal_rv_ports.h.

---

Member Function Documentation

template<int W>

void sc_core::sc_inout_rv< W >::end_of_elaboration

(

)

[inline, virtual]

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Definition at line 258 of file sc_signal_rv_ports.h.

template<int W>

virtual const char* sc_core::sc_inout_rv< W >::kind

(

)

const [inline, virtual]

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 241 of file sc_signal_rv_ports.h.

template<int W>

this_type& sc_core::sc_inout_rv< W >::operator=

(

const this_type &

port_

)

[inline]

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 231 of file sc_signal_rv_ports.h.

template<int W>

this_type& sc_core::sc_inout_rv< W >::operator=

(

const inout_port_type &

port_

)

[inline]

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >, and sc_core::sc_out_rv< W >.

Definition at line 228 of file sc_signal_rv_ports.h.

template<int W>

this_type& sc_core::sc_inout_rv< W >::operator=

(

const in_port_type &

port_

)

[inline]

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >, and sc_core::sc_out_rv< W >.

Definition at line 225 of file sc_signal_rv_ports.h.

template<int W>

this_type& sc_core::sc_inout_rv< W >::operator=

(

const in_if_type &

interface_

)

[inline]

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 222 of file sc_signal_rv_ports.h.

template<int W>

this_type& sc_core::sc_inout_rv< W >::operator=

(

const data_type &

value_

)

[inline]

Reimplemented from sc_core::sc_inout< sc_dt::sc_lv< W > >.

Reimplemented in sc_core::sc_out_rv< W >.

Definition at line 219 of file sc_signal_rv_ports.h.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_signal_rv_ports.h
